POSTEK MX Series

Industrial Print Engine

MX series, the printer is the PLC. With just a few tap on the LCD touch screen, the entire operation can be up and ready to go in no time with zero requirements for prior coding experiences.

Model
MX2 / MX2 Pro
MX3 / MX3 Pro
MX6 / MX6 Pro
MX2 Pro-Touch
MX3 Pro-Touch
MX6 Pro-Touch

RFID
MX2r / MX2r Pro
MX3r / MX3r Pro
MX6r / MX6r Pro

Highest print speed

18ips

Maximum print width

104mm

Maximum print length

5000mm

Printing resolution

203dpi
more specs

Highest print speed

14ips

Maximum print width

105.7mm

Maximum print length

5000mm

Printing resolution

300dpi
more specs

Highest print speed

6ips

Maximum print width

105.6mm

Maximum print length

5000mm

Printing resolution

600dpi
more specs

Highest print speed

18ips

Maximum print width

104mm

Printing resolution

203dpi
more specs

Highest print speed

14ips

Maximum print width

105.7mm

Printing resolution

300dpi
more specs

Highest print speed

6ips

Maximum print width

105.6mm

Printing resolution

600dpi
more specs

Highest print speed

18ips

Maximum print width

104mm

Maximum print length

5000mm

Printing resolution

203dpi
more specs

Highest print speed

14ips

Maximum print width

105.7mm

Maximum print length

5000mm

Printing resolution

300dpi
more specs

Highest print speed

6ips

Maximum print width

105.6mm

Maximum print length

5000mm

Printing resolution

600dpi
more specs
PLC? What PLC?

The integration of label printers into automated production lines

usually required the deployment of an externel PLC (or programmable logic controller)

 With the new MX series from POSTEK, the printer is the PLC

With just a few tap on the LCD touch screen

the entire operation can be up and ready to go in no time

with zero requirements for prior coding experi-ences

FEATURES

Wipe-on label applicator

With a rotary encoder built direclty into the MX series, the system manager could easily combine the printer with a customizable peeler and wipe-on applicator brush to transform the MX series print engine into a fully integrated wipe-on label applicator.

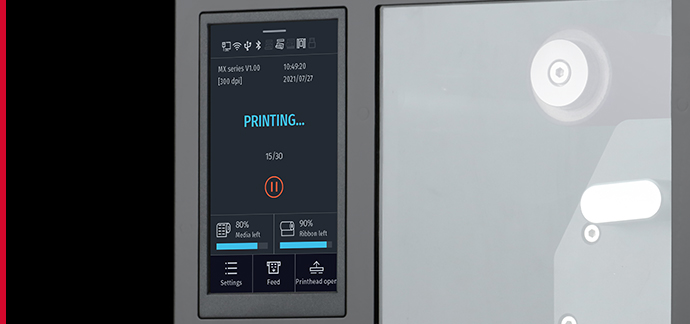

4.5 inch full color LCD touch screen display

Like all POSTEK machines, the MX series carries on the dedication to the best user experience. Equipped with a 4.5 inch LCD touch screen and one of the friendliest user interface, the level of convenience and ease of use provided by the MX series is unmatched in the industry.

Processing power like never before

Equipped with one of the most advance quad-core processor on the market, the MX series provides unimagineable processing power. Not only does that mean lighting processing speeds for anything the application can throw at it, but also allowing the MX series to take full advantage over software breakthroughs such as HEAT™, ADAPT™, or OX script™

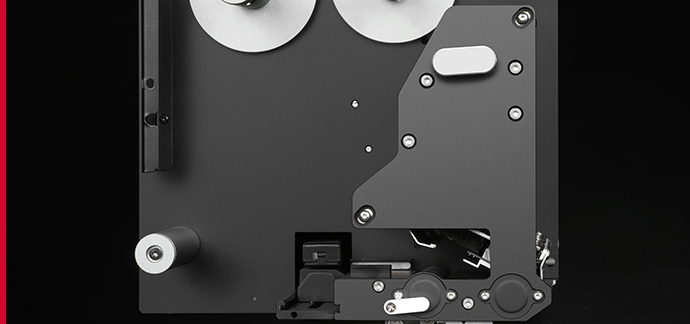

Fixed Print Engine Frame

A unique, patented aluminum print engine frame underpins the MX series printer, along with a new all-metal structure to deliver unparalleled stability and durability with uncompromised convenience of consumables loading.

Smart printer that saves ribbon

When equipped with the Ribbon Saving Kit, the MX series printer automatically lifts the printhead during the empty portions of the media under predefined conditions and locks down to print again when needed. Eliminating the consumption of ribbon without printing and extends printhead life span by putting an end to unnecessary wear and tear.


RFID Ready

The MX series equipped with RFID could provide one of the best user experiences in the RFID realm. With a simple push of a button, the MX series will automatically calibrate both the media and the RFID inlays within. Offering high fidelity media positioning and support for small RFID labels with a minimal distance of 12mm between RFID inlays.

RFID Verification

The optional RFID verification package detects errors/mismatches immediately. Marking the erroneous label or tag and reprinting with the same data automatically.


Real-time Visual Verification

Thanks to robust deep-learning-based algorithms, the fully integrated visual verification system on the OX series printers can read and grade 1D & 2D barcodes to ANSI/ISO standards, verify text data, and check the integrity of labels. If for any reason the printout doesn't meet the set standard, the printer will immediately notify relevant personals through the LCD screen and the accompanying indication light system.

Performance built-in

The TX series features an industry-leading four-core 1.8GHz MPU and a powerful GPU with 2D/3D graphics hardware acceleration. Providing ample processing power for consistent, high-demand print jobs as well as extensively customized software applications.

Built it, Store it, Run it

With more than 2G of RAM and 8G of flash, the TX series allows for never-before-seen use cases where the printer not only handles the majority of the processing, but data storing as well. Easily store tens of thousands of data files like Excel, label templates, fonts, and graphics directly on the printer, and print away with just a few taps on the printer’s screen.

Cuts the Cords, Connect the Freedom

Ditch the tangle of cords and revel in the freedom offered by the integrated Bluetooth/Wi-Fi module. Seamlessly connect to and oversee your printer ensemble from any location that suits you. Streamline your workflow and take control without being physically tethered to the printers.

OX Script

Printing without a computer have been possible for a few decades. However, it requires a pre-made templates to be stored on the printer and the template only have one or two parameter that can be modified in real time. With OX script, a POSTEK scripting language based off of python, templates are a thing of the past. Based on various pre-set conditions and requirements, every element of every label in every print job can be different from the one before it and the one after it. Who sets the conditions then? You may ask, and the answer is you do. OX scripts give you the freedom and flexibility to fully customize the printing script to best fit your needs.

OX Script, the new standard of customization

Through OX Script, one can easily create complex and extensive custom software for the printer. Enabling use cases never before seen. From reading/writing to cloud databases directly from the printer, accessing files stored locally on the printer, and creating User Interfaces specific to the application, OX Script offers an unprecedented level of freedom and customization. Breaking free of the requirement of a PC for complex use cases.

One Screen to do it all

Equipped with a 4.5-inch colored touch screen and a user-friendly interface, printing can be started directly using the printer’s screen. The big screen also allows for an incorporated keyboard, making it easy for real-time user input.
More information
Product support

POSTEK MX Series

Industrial Print Engine

Model:
MX2 / MX2 Pro
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 203 dpi
Max Print Speed: 18 ips
Max Media Width: 4.72″ (120 mm)
Max Print Width: 4.09″ (104 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39″ (10 mm)

Maximum Outer Diameter: 12″ (304.8 mm)

Inner Diameter: 1.5″ (38 mm) / 3″ (76.2 mm)

(Only the Pro models are equipped with media supply mechanism)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Liner Rewind:
 Maximum Outer Diameter: 7.87"(200 mm) (Only the Pro models are equipped with liner rewinder)

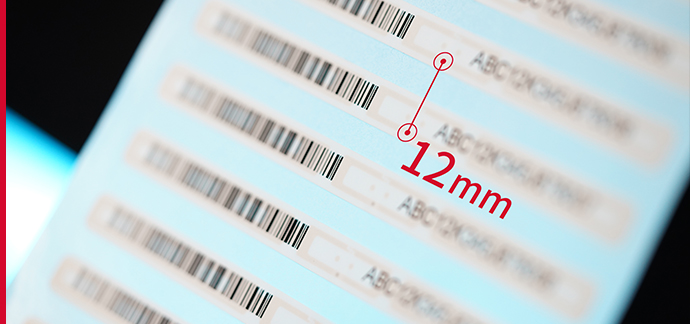

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off: 0.47″ (12 mm)

Ribbon:
 N/A

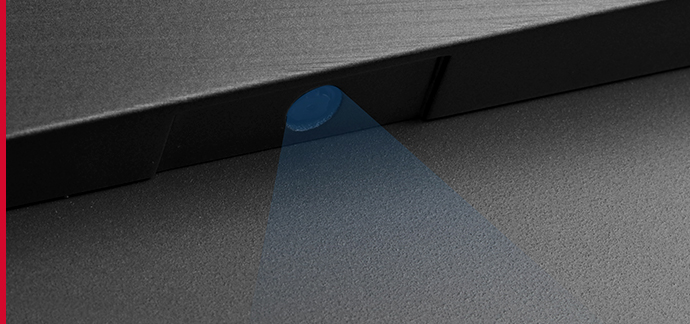

Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

MX2: 12 kgs （ 26.46 lbs)

MX2 Pro: 16.5 kgs （ 36.38 lbs)

Dimensions:

MX2: W 9.6"(245 mm) x D 16.0"(405.8 mm) x H 12.1"(306.7 mm)

MX2 Pro: W 20.3"(515 mm) x D 16.0"(405.8 mm) x H 14.4"(366 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.





Optional Configuration

*Accessories shall be installed at the factory

Visual Verifier*:


There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2.Verifies 1D & 2D barcode data and grades printed barcode symbologies.

3.Verifies 1D & 2D barcode data, grades printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Ribbon Saving Kit*: Including the following items：

1. The ribbon take-up clutch.
2. The automatic printhead open/close module.

3. The media tension mechanism for a MX Pro model printer.
(For standard models, the media supply system must take measures to prevent the media from being loose while backfeeding.)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0



POSTEK MX Series

Industrial Print Engine

Model:
MX3 / MX3 Pro
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 300 dpi
Max Print Speed: 14 ips
Max Media Width: 4.72″ (120 mm)
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39″ (10 mm)

Maximum Outer Diameter: 12″ (304.8 mm)

Inner Diameter: 1.5″ (38 mm) / 3″ (76.2 mm)

(Only the Pro models are equipped with media supply mechanism)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Liner Rewind:
 Maximum Outer Diameter: 7.87"(200 mm) (Only the Pro models are equipped with liner rewinder)

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off: 0.47″ (12 mm)

Ribbon:

Width: 0.79″ to 4.33″ (20 mm to 110 mm)

Maximum Ribbon Length: 1968‘ (600 m)

Maximum Outer Diameter: 3.38” (86 mm)

Inner Diameter: 1” (25.4 mm)

Ink side: both In and Out
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

MX3: 13.5 kgs （ 29.76 lbs)

MX3 Pro: 18 kgs （ 39.68 lbs)

Dimensions:

MX3: W 9.6"(245 mm) x D 16.0"(405.8 mm) x H 12.1"(306.7 mm)

MX3 Pro: W 20.3"(515 mm) x D 16.0"(405.8 mm) x H 14.4"(366 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.





Optional Configuration

*Accessories shall be installed at the factory

Visual Verifier*:


There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2.Verifies 1D & 2D barcode data and grades printed barcode symbologies.

3.Verifies 1D & 2D barcode data, grades printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Ribbon Saving Kit*: Including the following items：

1. The ribbon take-up clutch.
2. The automatic printhead open/close module.

3. The media tension mechanism for a MX Pro model printer.
(For standard models, the media supply system must take measures to prevent the media from being loose while backfeeding.)


Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0



POSTEK MX Series

Industrial Print Engine

Model:
MX6 / MX6 Pro
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 600 dpi
Max Print Speed: 6 ips
Max Media Width: 4.72″ (120 mm)
Max Print Width: 4.16″ (105.6 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39″ (10 mm)

Maximum Outer Diameter: 12″ (304.8 mm)

Inner Diameter: 1.5″ (38 mm) / 3″ (76.2 mm)

(Only the Pro models are equipped with media supply mechanism)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Liner Rewind:
 Maximum Outer Diameter: 7.87"(200 mm) (Only the Pro models are equipped with liner rewinder)

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off: 0.47″ (12 mm)

Ribbon:

Width: 0.79″ to 4.33″ (20 mm to 110 mm)

Maximum Ribbon Length: 1968‘ (600 m)

Maximum Outer Diameter: 3.38” (86 mm)
Inner Diameter: 1” (25.4 mm)
Ink side: both In and Out
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

MX6: 14 kgs （ 30.86 lbs)

MX6 Pro: 18.5 kgs （ 40.79 lbs)

Dimensions:

MX6: W 9.6"(245 mm) x D 16.0"(405.8 mm) x H 12.1"(306.7 mm)

MX6 Pro: W 20.3"(515 mm) x D 16.0"(405.8 mm) x H 14.4"(366 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.





Optional Configuration

*Accessories shall be installed at the factory

Visual Verifier*:


There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2.Verifies 1D & 2D barcode data and grades printed barcode symbologies.

3.Verifies 1D & 2D barcode data, grades printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Ribbon Saving Kit*: Including the following items：

1. The ribbon take-up clutch.
2. The automatic printhead open/close module.

3. The media tension mechanism for a MX Pro model printer.
(For standard models, the media supply system must take measures to prevent the media from being loose while backfeeding.)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0



POSTEK MX Series

Industrial Print Engine

Model:
MX2 Pro-Touch
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 203 dpi
Max Print Speed: 18 ips
Max Media Width: 4.72″ (120 mm)
Max Print Width: 4.09″ (104 mm)
Application Mode: Touch-on
Label Size for Application ①:
 Width: 10 ~ 120 mm

Height: 10 ~ 200 mm

Labeling Speed②:
 35 labels/min
Labeling Cylinder Stroke:
 300 mm
Applying Directions:
 On the top, on the below, or on the side
Size of the Product to Be Labeled:
 Variable
Operating Air Pressure:
 0.5~0.8 MPa
GPU:
 GC NanoUltra 3D (1 shader) &GC320 2D OpenGL ES 2.0
MPU:
 64-bit, quad Arm® Cortex®-A53 core, maximum operating frequency 1.8 GHz
Memory:
 2GB DDR4 RAM, 8GB Managed NAND Flash
*HEAT™ Level:
 Ⅰ
RFID Encoder:
 Supports UHF EPC Gen 2, ISO 18000-6C protocols (Only available for RFID models)
Media Roll:

Maximum Outer Diameter: 12″ (304.8 mm)

Inner Diameter: 3″ (76.2 mm)

Liner Rewind:
 Outer Diameter: 7.87″ (200 mm) max.
Media Thickness:
 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner
Ribbon:
 Width: 0.79″ ~ 4.33″ (20 ~ 110 mm)

Length: 1968' (600 m) max.
Outer Diameter: 3.38″ (86 mm) max.
Inner Diameter: 1″ (25.4 mm)

Media Sensor:
 Upper reffective: detects black marks on print side

Lower reffective: detects black marks on back side
Transmissive: detects gaps, notches, holes

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)
Relative humidity: 5% - 90% non-condensing
Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)
Relative humidity: 5% - 90% non-condensing


① The tamp needs to be customized according to the actual size of the label to be applied.
② The labeling speed varies depending on the height of the label and the selected print speed, the Labeling Speed here is base on a label height of 100 mm and a printing speed of 8ips.
③ HEAT™ , or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEATTM have signiffcant improvements in their printout clarity and print speed. The HEATTM level represents the ffneness of the heating uniformity with level I being the ffnest.





Optional Features

RFID Veriffer* : External-mount module
Visual Verifier*:


There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2.Verifies 1D & 2D barcode data and grades printed barcode symbologies.

3.Verifies 1D & 2D barcode data, grades printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Ribbon Saving Kit*: Including the following items：

1. A set of printhead motorized lifting assembly.

2. Automatic Brake on the ribbon take-up spindle.

Y-axis Pneumatic Slide*:

Maximum stroke length: 10mm

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cylinder Stroke Range* :

200mm、400mm、500mm


*Factory dependent


POSTEK MX Series

Industrial Print Engine

Model:
MX2 Pro-Touch
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 300 dpi
Max Print Speed: 14 ips
Max Media Width: 4.72″ (120 mm)
Max Print Width: 4.16″ (105.7 mm)
Application Mode: Touch-on
Label Size for Application ①:
 Width: 10 ~ 120 mm

Height: 10 ~ 200 mm

Labeling Speed②:
 35 labels/min
Labeling Cylinder Stroke:
 300 mm
Applying Directions:
 On the top, on the below, or on the side
Size of the Product to Be Labeled:
 Variable
Operating Air Pressure:
 0.5~0.8 MPa
GPU:
 GC NanoUltra 3D (1 shader) &GC320 2D OpenGL ES 2.0
MPU:
 64-bit, quad Arm® Cortex®-A53 core, maximum operating frequency 1.8 GHz
Memory:
 2GB DDR4 RAM, 8GB Managed NAND Flash
*HEAT™ Level:
 Ⅰ
RFID Encoder:
 Supports UHF EPC Gen 2, ISO 18000-6C protocols (Only available for RFID models)
Media Roll:

Maximum Outer Diameter: 12″ (304.8 mm)

Inner Diameter: 3″ (76.2 mm)

Liner Rewind:
 Outer Diameter: 7.87″ (200 mm) max.
Media Thickness:
 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner
Ribbon:
 Width: 0.79″ ~ 4.33″ (20 ~ 110 mm)

Length: 1968' (600 m) max.
Outer Diameter: 3.38″ (86 mm) max.
Inner Diameter: 1″ (25.4 mm)

Media Sensor:
 Upper reffective: detects black marks on print side

Lower reffective: detects black marks on back side
Transmissive: detects gaps, notches, holes

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)
Relative humidity: 5% - 90% non-condensing
Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)
Relative humidity: 5% - 90% non-condensing


① The tamp needs to be customized according to the actual size of the label to be applied.
② The labeling speed varies depending on the height of the label and the selected print speed, the Labeling Speed here is base on a label height of 100 mm and a printing speed of 8ips.
③ HEAT™ , or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEATTM have signiffcant improvements in their printout clarity and print speed. The HEATTM level represents the ffneness of the heating uniformity with level I being the ffnest.





Optional Features

RFID Veriffer* : External-mount module
Visual Verifier*:


There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2.Verifies 1D & 2D barcode data and grades printed barcode symbologies.

3.Verifies 1D & 2D barcode data, grades printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Ribbon Saving Kit*: Including the following items：

1. A set of printhead motorized lifting assembly.

2. Automatic Brake on the ribbon take-up spindle.

Y-axis Pneumatic Slide*:

Maximum stroke length: 10mm

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cylinder Stroke Range* :

200mm、400mm、500mm


*Factory dependent


POSTEK MX Series

Industrial Print Engine

Model:
MX6 Pro-Touch
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 600 dpi
Max Print Speed: 6 ips
Max Media Width: 4.72″ (120 mm)
Max Print Width: 4.16″ (105.6 mm)
Application Mode: Touch-on
Label Size for Application ①:
 Width: 10 ~ 120 mm

Height: 10 ~ 200 mm

Labeling Speed②:
 35 labels/min
Labeling Cylinder Stroke:
 300 mm
Applying Directions:
 On the top, on the below, or on the side
Size of the Product to Be Labeled:
 Variable
Operating Air Pressure:
 0.5~0.8 MPa
GPU:
 GC NanoUltra 3D (1 shader) &GC320 2D OpenGL ES 2.0
MPU:
 64-bit, quad Arm® Cortex®-A53 core, maximum operating frequency 1.8 GHz
Memory:
 2GB DDR4 RAM, 8GB Managed NAND Flash
*HEAT™ Level:
 Ⅰ
RFID Encoder:
 Supports UHF EPC Gen 2, ISO 18000-6C protocols (Only available for RFID models)
Media Roll:

Maximum Outer Diameter: 12″ (304.8 mm)

Inner Diameter: 3″ (76.2 mm)

Liner Rewind:
 Outer Diameter: 7.87″ (200 mm) max.
Media Thickness:
 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner
Ribbon:
 Width: 0.79″ ~ 4.33″ (20 ~ 110 mm)

Length: 1968' (600 m) max.
Outer Diameter: 3.38″ (86 mm) max.
Inner Diameter: 1″ (25.4 mm)

Media Sensor:
 Upper reffective: detects black marks on print side

Lower reffective: detects black marks on back side
Transmissive: detects gaps, notches, holes

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)
Relative humidity: 5% - 90% non-condensing
Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)
Relative humidity: 5% - 90% non-condensing


① The tamp needs to be customized according to the actual size of the label to be applied.
② The labeling speed varies depending on the height of the label and the selected print speed, the Labeling Speed here is base on a label height of 100 mm and a printing speed of 8ips.
③ HEAT™ , or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEATTM have signiffcant improvements in their printout clarity and print speed. The HEATTM level represents the ffneness of the heating uniformity with level I being the ffnest.





Optional Features

RFID Veriffer* : External-mount module
Visual Verifier*:


There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2.Verifies 1D & 2D barcode data and grades printed barcode symbologies.

3.Verifies 1D & 2D barcode data, grades printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Ribbon Saving Kit*: Including the following items：

1. A set of printhead motorized lifting assembly.

2. Automatic Brake on the ribbon take-up spindle.

Y-axis Pneumatic Slide*:

Maximum stroke length: 10mm

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cylinder Stroke Range* :

200mm、400mm、500mm


*Factory dependent


POSTEK MX Series

Industrial Print Engine

Model:
MX2r / MX2r Pro
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 203 dpi
Max Print Speed: 18 ips
Max Media Width: 4.72″ (120 mm)
Max Print Width: 4.09″ (104 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
HEAT™ Level①:
 Ⅰ

RFID Encoder:

Supports UHF EPC Gen 2, ISO 18000-6C protocols

Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39″ (10 mm)

Maximum Outer Diameter: 12″ (304.8 mm)

Inner Diameter: 1.5″ (38 mm) / 3″ (76.2 mm)

(Only the Pro models are equipped with media supply mechanism)

Liner Rewind:
 Maximum Outer Diameter: 7.87"(200 mm) (Only the Pro models are equipped with liner rewinder)

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off: 0.47″ (12 mm)

Media Thickness:

Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Ribbon:
 N/A
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:


Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.


Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

MX2r: 12 kgs （ 26.46 lbs)

MX2r Pro: 16.5 kgs （ 36.38 lbs)

Dimensions:

MX2r: W 9.6"(245 mm) x D 16.0"(405.8 mm) x H 12.1"(306.7 mm)

MX2r Pro: W 20.3"(515 mm) x D 16.0"(405.8 mm) x H 14.4"(366 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing



① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.








Optional Configuration

*Accessories shall be installed at the factory

RFID Verifier*:

External-mount module (Only available for RFID models)

Visual Verifier*:


There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2.Verifies 1D & 2D barcode data and evaluates printed barcode symbologies.

3.Verifies 1D & 2D barcode data, evaluates printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)



Ribbon Saving Kit*: Including the following items：

1. The ribbon take-up clutch.
2. The automatic printhead open/close module.

3. The media tension mechanism for a MX Pro model printer.
(For standard models, the media supply system must take measures to prevent the media from being loose while backfeeding.)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0





POSTEK MX Series

Industrial Print Engine

Model:
MX3r / MX3r Pro
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 300 dpi
Max Print Speed: 14 ips
Max Media Width: 4.72″ (120 mm)
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
HEAT™ Level①:
 Ⅰ

RFID Encoder:

Supports UHF EPC Gen 2, ISO 18000-6C protocols

Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39″ (10 mm)

Maximum Outer Diameter: 12″ (304.8 mm)

Inner Diameter: 1.5″ (38 mm) / 3″ (76.2 mm)

(Only the Pro models are equipped with media supply mechanism)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Liner Rewind:
 Maximum Outer Diameter: 7.87"(200 mm) (Only the Pro models are equipped with liner rewinder)

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off: 0.47″ (12 mm)

Media Thickness:

Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Ribbon:

Width: 0.79″ to 4.33″ (20 mm to 110 mm)

Maximum Ribbon Length: 1968‘ (600 m)

Maximum Outer Diameter: 3.38” (86 mm)

Inner Diameter: 1” (25.4 mm)

Ink side: both In and Out
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

MX3r: 13.5 kgs （ 29.76 lbs)

MX3r Pro: 18 kgs （ 39.68 lbs)

Dimensions:

MX3r: W 9.6"(245 mm) x D 16.0"(405.8 mm) x H 12.1"(306.7 mm)

MX3r Pro: W 20.3"(515 mm) x D 16.0"(405.8 mm) x H 14.4"(366 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing




① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.








Optional Configuration

*Accessories shall be installed at the factory

RFID Verifier*:

External-mount module (Only available for RFID models)

Visual Verifier*:


There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2.Verifies 1D & 2D barcode data and evaluates printed barcode symbologies.

3.Verifies 1D & 2D barcode data, evaluates printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)



Ribbon Saving Kit*: Including the following items：

1. The ribbon take-up clutch.
2. The automatic printhead open/close module.

3. The media tension mechanism for a MX Pro model printer.
(For standard models, the media supply system must take measures to prevent the media from being loose while backfeeding.)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0





POSTEK MX Series

Industrial Print Engine

Model:
MX6r / MX6r Pro
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 600 dpi
Max Print Speed: 6 ips
Max Media Width: 4.72″ (120 mm)
Max Print Width: 4.16″ (105.6 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
HEAT™ Level①:
 Ⅰ

RFID Encoder:

Supports UHF EPC Gen 2, ISO 18000-6C protocols

Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39″ (10 mm)

Maximum Outer Diameter: 12″ (304.8 mm)

Inner Diameter: 1.5″ (38 mm) / 3″ (76.2 mm)

(Only the Pro models are equipped with media supply mechanism)

Liner Rewind:
 Maximum Outer Diameter: 7.87"(200 mm) (Only the Pro models are equipped with liner rewinder)

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off: 0.47″ (12 mm)

Media Thickness:

Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Ribbon:

Width: 0.79″ to 4.33″ (20 mm to 110 mm)

Maximum Ribbon Length: 1968‘ (600 m)

Maximum Outer Diameter: 3.38” (86 mm)
Inner Diameter: 1” (25.4 mm)
Ink side: both In and Out
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface, Logic Control I/O Signal Wiring Terminal Block

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

MX6: 14 kgs （ 30.86 lbs)

MX6r Pro: 18.5 kgs （ 40.79 lbs)

Dimensions:

MX6r: W 9.6"(245 mm) x D 16.0"(405.8 mm) x H 12.1"(306.7 mm)

MX6r Pro: W 20.3"(515 mm) x D 16.0"(405.8 mm) x H 14.4"(366 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing



① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.








Optional Configuration

*Accessories shall be installed at the factory

RFID Verifier*:

External-mount module (Only available for RFID models)

Visual Verifier*:


There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2.Verifies 1D & 2D barcode data and evaluates printed barcode symbologies.

3.Verifies 1D & 2D barcode data, evaluates printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)



Ribbon Saving Kit*: Including the following items：

1. The ribbon take-up clutch.
2. The automatic printhead open/close module.

3. The media tension mechanism for a MX Pro model printer.
(For standard models, the media supply system must take measures to prevent the media from being loose while backfeeding.)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0
