POSTEK TX Exp Series

Industrial
RFID|Barcode Label Printer

ALL THE WONDERS OF POSTEK
NOW AT YOUR FINGERTIPS

Model
TX2 Exp
TX3 Exp
TX6 Exp
TX2 Exp (Max)
TX3 Exp (Max)
TX6 Exp (Max)

RFID
TX2r Exp
TX3r Exp
TX6r Exp
TX2r Exp (Max)
TX3r Exp (Max)
TX6r Exp (Max)

Highest print speed

16ips

Maximum print width

104mm

Maximum print length

5000mm

Printing resolution

203dpi
more specs

Highest print speed

12ips

Maximum print width

105.7mm

Maximum print length

5000mm

Printing resolution

300dpi
more specs

Highest print speed

6ips

Maximum print width

105.7mm

Maximum print length

5000mm

Printing resolution

600dpi
more specs

Highest print speed

16ips

Maximum print width

104mm

Maximum print length

5000mm

Printing resolution

203dpi
more specs

Highest print speed

12ips

Maximum print width

105.7mm

Maximum print length

5000mm

Printing resolution

300dpi
more specs

Highest print speed

6ips

Maximum print width

105.7mm

Maximum print length

5000mm

Printing resolution

600dpi
more specs

Highest print speed

16ips

Maximum print width

104mm

Maximum print length

5000mm

Printing resolution

203dpi
more specs

Highest print speed

12ips

Maximum print width

105.7mm

Maximum print length

5000mm

Printing resolution

300dpi
more specs

Highest print speed

6ips

Maximum print width

105.7mm

Maximum print length

5000mm

Printing resolution

600dpi
more specs

Highest print speed

16ips

Maximum print width

104mm

Maximum print length

5000mm

Printing resolution

203dpi
more specs

Highest print speed

12ips

Maximum print width

105.7mm

Maximum print length

5000mm

Printing resolution

300dpi
more specs

Highest print speed

6ips

Maximum print width

105.7mm

Maximum print length

5000mm

Printing resolution

600dpi
more specs

ALL THE WONDERS OF POSTEK

NOW AT YOUR FINGERTIPS

OVERVIEW

Performance has always been the top priority for any POSTEK printer. Built upon the solid OX series platform, the new TX Exp (Max) now comes with a built-in peeler/rewinder combo on top of all the innovative features users have come to know and love. The tough new golden aluminum alloy exterior allows for unparalleled durability.  Making the TX Exp series a perfect choice for any harsh condition one can throw at an industrial label printer.

FEATURES


A Golden Aluminum Alloy Exterior


The brand-new golden aluminum alloy exterior offers not only a refreshed look but also a fully featured built-in peeler. Offering the best possible peeler
performance while maintaining one of the smallest form factors one can find in an industrial printer.

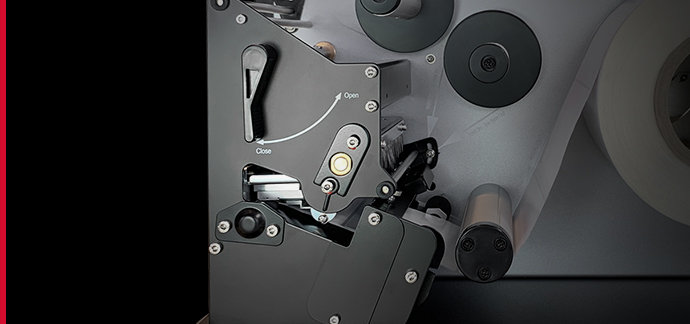

Fixed Print Engine Frame


A unique, patented aluminum print engine frame underpins the TX Exp Series. Combined with the all-metal construction, the new TX Exp Series delivers unparalleled stability and durability while maintaining uncompromising levels of convenience for consumables loading.


Advanced Dynamic Adaptive Precision Tuning（ADAPT ™）ADAPT ™

Say goodbye to poor printout quality due to wear and tear on the platen roller, changing of media thickness,
or different friction coefficient of media. With the innovative precise calibration algorithm, the best printout quality in the industry can be achieved with a simple automatic calibration process. Providing consistent, precise printout while drastically cutting back on the need for maintenance.




HEAT ™ Technology


Powered by one of the most advanced quad-core applications processors, the POSTEK TX Exp series printer takes full advantage of the cutting-edge HEAT™ printing technology, providing the best in class printout qualities. Combined with a 4.5-inch touchscreen control panel and a number of new mechanical innovations, the TX Exp series printer unveils a brand-new user experience unparalleled in the on-demand label printing industry.

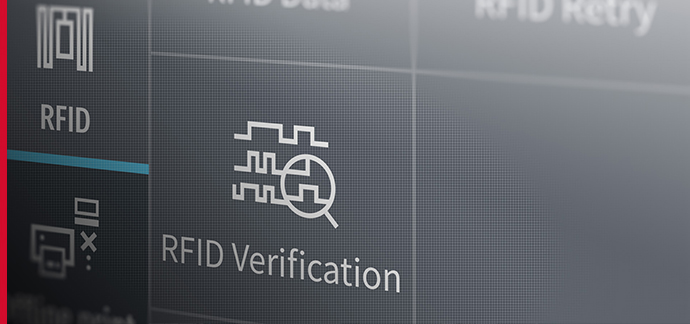

RFID Verification

The optional RFID verifitcation package detects errors/mismatches immediately. Marking the erroneous label or tag and reprinting with the same data automatically.

Real-time remaining consumable levels

In today's fast-paced world, lost time due to the need to replace consumables is a necessary evil that should be minimized at all costs to maximize productivity. Never be caught off guard again with real-time remaining consumable levels monitoring so you would always be prepared

Performance built-in

The TX Exp Series features an industry-leading four-core 1.8GHz MPU and a powerful GPU with 2D/3D graphics hardware acceleration. Providing ample processing power for consistent, high-demand print jobs as well as extensively customized software applications.

Built it, Store it, Run it


With more than 2G of RAM and 8G of flash, the TX Exp series allows for never-before-seen use cases where the printer not only handles the majority of the processing, but data storing as well. Easily store tens of thousands of data files like Excel, label templates, fonts, and graphics directly on the printer, and print away with just a few taps on the printer's screen.

Cuts the Cords, Connect the Freedom

Ditch the tangle of cords and revel in the freedom offered by the integrated Bluetooth/Wi-Fi module. Seamlessly connect to and oversee your printer ensemble from any location that suits you. Streamline your workflow and take control without being physically tethered to the printers.

OX Script


Printing without a computer have been possible for a few decades. However, it requires a pre-made templates to be stored on the printer and the template only have one or two parameter that can be modified in real time. With OX script, a POSTEK scripting language based off of python, templates are a thing of the past. Based on various pre-set conditions and requirements, every element of every label in every print job can be different from the one before it and the one after it. Who sets the conditions then? You may ask, and the answer is you do. OX scripts give you the freedom and flexibility to fully customize the printing script to best fit your needs.

OX Script, the new standard of customization


Through OX Script, one can easily create complex and extensive custom software for the printer. Enabling use cases never before seen. From reading/writing to cloud databases directly from the printer, accessing files stored locally on the printer, and creating User Interfaces specific to the application, OX Script offers an unprecedented level of freedom and customization. Breaking free of the requirement of a PC for complex use cases.


One Screen to do it all

Equipped with a 4.5-inch colored touch screen and a user-friendly interface, printing can be started directly using the printer's screen. The big screen also allows for an incorporated keyboard, making it easy for real-time user input.

More information
Product support

POSTEK TX Exp Series

Industrial RFID|Barcode Label Printer

Model:
TX2 Exp
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 203 dpi
Max Print Speed: 16 ips
Max Print Width: 4.09″ (104 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:

Maximum Media Width: 4.56″ (116 mm)

Minimum Media Width: 0.39" (10 mm)

Maximum Outer Diameter: 8" (203.2 mm)Inner Diameter: 1.5"（38 mm）/ 3" (76.2 mm)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Cutter: 0.79″ (20 mm)

Ribbon:
 Max Ribbon Length: 1968’ (600 m) Max Ribbon Width: 4.65″ (118 mm)
Max Outer Diameter: 3.31″ (84 mm) Inner Diameter: 1″ (25.4 mm)
Ink side: both In and Out
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

15 kgs （ 33.07 lbs)

Dimensions:

W 11.3″ (286 mm) × D 17.6″ (448 mm) × H 10.7″ (271 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing,
Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.



Optional Items

*Accessories shall be installed at the factory

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cutters:
 Type              Rotary Cutter

Model           A150S     A400S     A400P

Max. Cut Width      120 mm    120 mm    120 mm

Min. Cut Length      20 mm     20 mm    20 mm

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm  0.35 mm


Cuts Guaranteed      600,000    600,000    600,000

Cut Speed          0.8 sec/cut  0.8 sec/cut   0.15 sec/cut




POSTEK TX Exp Series

Industrial RFID|Barcode Label Printer

Model:
TX3 Exp
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 300 dpi
Max Print Speed: 12 ips
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:

Maximum Media Width: 4.56″ (116 mm)

Minimum Media Width: 0.39" (10 mm)

Maximum Outer Diameter: 8" (203.2 mm)Inner Diameter: 1.5"（38 mm）/ 3" (76.2 mm)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Cutter: 0.79″ (20 mm)

Ribbon:
 Max Ribbon Length: 1968’ (600 m) Max Ribbon Width: 4.65″ (118 mm)
Max Outer Diameter: 3.31″ (84 mm) Inner Diameter: 1″ (25.4 mm)
Ink side: both In and Out
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

15 kgs （ 33.07 lbs)

Dimensions:

W 11.3″ (286 mm) × D 17.6″ (448 mm) × H 10.7″ (271 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing,

Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.



Optional Items

*Accessories shall be installed at the factory

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cutters:
 Type              Rotary Cutter

Model           A150S     A400S     A400P

Max. Cut Width      120 mm    120 mm    120 mm

Min. Cut Length      20 mm     20 mm    20 mm

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm  0.35 mm


Cuts Guaranteed      600,000    600,000    600,000

Cut Speed          0.8 sec/cut  0.8 sec/cut   0.15 sec/cut




POSTEK TX Exp Series

Industrial RFID|Barcode Label Printer

Model:
TX6 Exp
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 600 dpi
Max Print Speed: 6 ips
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:

Maximum Media Width: 4.56″ (116 mm)

Minimum Media Width: 0.39" (10 mm)

Maximum Outer Diameter: 8" (203.2 mm)Inner Diameter: 1.5"（38 mm）/ 3" (76.2 mm)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Minimum Label Length:

Tear-off: 0.2″ (5 mm)


Cutter: 0.79″ (20 mm)


Ribbon:
 Max Ribbon Length: 1968’ (600 m) Max Ribbon Width: 4.65″ (118 mm)
Max Outer Diameter: 3.31″ (84 mm) Inner Diameter: 1″ (25.4 mm)
Ink side: both In and Out
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST,General I/O Signal Interface (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

15 kgs （ 33.07 lbs)

Dimensions:

W 11.3″ (286 mm) × D 17.6″ (448 mm) × H 10.7″ (271 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing,
Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing

Optional Items:

Cutters, Wireless Module


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.



Optional Items

*Accessories shall be installed at the factory

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cutters:
 Type              Rotary Cutter

Model           A150S     A400S     A400P

Max. Cut Width      120 mm    120 mm    120 mm

Min. Cut Length      20 mm     20 mm    20 mm

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm  0.35 mm


Cuts Guaranteed      600,000    600,000    600,000

Cut Speed          0.8 sec/cut  0.8 sec/cut   0.15 sec/cut




POSTEK TX Exp Series

Industrial RFID|Barcode Label Printer

Model:
TX2 Exp (Max)
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 203 dpi
Max Print Speed: 16 ips
Max Print Width: 4.09″ (104 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39" (10 mm)
Maximum Outer Diameter: 8″ (203.2 mm)
Inner Diameter: 1.5″ (38 mm) / 3″ (76.2 mm)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off (Only for Max version printers):
0.47″ (12 mm), with label peeled-off sensor
0.2″ (5 mm), w/o label peeled-off sensor

Cutter: 0.79″ (20 mm)

Ribbon:
 Max Ribbon Length: 1968’ (600 m) Max Ribbon Width: 4.65″ (118 mm)
Max Outer Diameter: 3.31″ (84 mm) Inner Diameter: 1″ (25.4 mm)
Ink side: both In and Out
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

Without peeler: 37.9 lbs (17.2 kgs)
With peeler: 41.45 lbs (18.8 kgs)

Dimensions:

Without peeler: W 11.3″ (286 mm) x D 17.6″ (448 mm) x H 10.7″ (271 mm)
With peeler: W 11.3″ (286 mm) x D 17.6″ (448 mm) x H 11.4″ (289 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing,
Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.



Optional Items

*Accessories shall be installed at the factory

Automatic Peeler*:

A dedicated set of peeling rollers, an internal liner rewinder, and a label peeled-off sensor.
Liner Take-up Roll:
Maximum Outer Diameter: 5.51″ (140 mm)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cutters:
 Type              Rotary Cutter

Model           A150S     A400S     A400P

Max. Cut Width      120 mm    120 mm    120 mm

Min. Cut Length      20 mm     20 mm    20 mm

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm  0.35 mm


Cuts Guaranteed      600,000    600,000    600,000

Cut Speed          0.8 sec/cut  0.8 sec/cut   0.15 sec/cut





POSTEK TX Exp Series

Industrial RFID|Barcode Label Printer

Model:
TX3 Exp (Max)
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 300 dpi
Max Print Speed: 12 ips
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39" (10 mm)
Maximum Outer Diameter: 8″ (203.2 mm)
Inner Diameter: 1.5″ (38 mm) / 3″ (76.2 mm)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off (Only for Max version printers):
0.47″ (12 mm), with label peeled-off sensor
0.2″ (5 mm), w/o label peeled-off sensor

Cutter: 0.79″ (20 mm)

Ribbon:
 Max Ribbon Length: 1968’ (600 m) Max Ribbon Width: 4.65″ (118 mm)
Max Outer Diameter: 3.31″ (84 mm) Inner Diameter: 1″ (25.4 mm)
Ink side: both In and Out
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

Without peeler: 37.9 lbs (17.2 kgs)
With peeler: 41.45 lbs (18.8 kgs)

Dimensions:

Without peeler: W 11.3″ (286 mm) x D 17.6″ (448 mm) x H 10.7″ (271 mm)
With peeler: W 11.3″ (286 mm) x D 17.6″ (448 mm) x H 11.4″ (289 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing,
Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.



Optional Items

*Accessories shall be installed at the factory

Automatic Peeler*:

A dedicated set of peeling rollers, an internal liner rewinder, and a label peeled-off sensor.
Liner Take-up Roll:
Maximum Outer Diameter: 5.51″ (140 mm)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cutters:
 Type              Rotary Cutter

Model           A150S     A400S     A400P

Max. Cut Width      120 mm    120 mm    120 mm

Min. Cut Length      20 mm     20 mm    20 mm

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm  0.35 mm


Cuts Guaranteed      600,000    600,000    600,000

Cut Speed          0.8 sec/cut  0.8 sec/cut   0.15 sec/cut





POSTEK TX Exp Series

Industrial RFID|Barcode Label Printer

Model:
TX6 Exp (Max)
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 600 dpi
Max Print Speed: 6 ips
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:
 Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39" (10 mm)
Maximum Outer Diameter: 8″ (203.2 mm)
Inner Diameter: 1.5″ (38 mm) / 3″ (76.2 mm)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off (Only for Max version printers):
0.47″ (12 mm), with label peeled-off sensor 0.2″ (5 mm), w/o label peeled-off sensor

Cutter: 0.79″ (20 mm)

Ribbon:
 Max Ribbon Length: 1968’ (600 m)

Max Ribbon Width: 4.65″ (118 mm)

Max Outer Diameter: 3.31″ (84 mm) Inner Diameter: 1″ (25.4 mm)
Ink side: both In and Out
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST,General I/O Signal Interface (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

Without peeler: 37.9 lbs (17.2 kgs)
With peeler: 41.45 lbs (18.8 kgs)

Dimensions:

Without peeler: W 11.3″ (286 mm) x D 17.6″ (448 mm) x H 10.7″ (271 mm)
With peeler: W 11.3″ (286 mm) x D 17.6″ (448 mm) x H 11.4″ (289 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing,
Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.



Optional Items

*Accessories shall be installed at the factory

Automatic Peeler*:

A dedicated set of peeling rollers, an internal liner rewinder, and a label peeled-off sensor.
Liner Take-up Roll:
Maximum Outer Diameter: 5.51″ (140 mm)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cutters:
 Type              Rotary Cutter

Model           A150S     A400S     A400P

Max. Cut Width      120 mm    120 mm    120 mm

Min. Cut Length      20 mm     20 mm    20 mm

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm  0.35 mm


Cuts Guaranteed      600,000    600,000    600,000

Cut Speed          0.8 sec/cut  0.8 sec/cut   0.15 sec/cut





POSTEK TX Exp Series

Industrial RFID|Barcode Label Printer

Model:
TX2r Exp
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 203 dpi
Max Print Speed: 16 ips
Max Print Width: 4.09″ (104 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
HEAT™ Level①:
 Ⅰ

RFID Encoder:

Supports UHF EPC Gen 2, ISO 18000-6C protocols

Media Roll:

Maximum Media Width: 4.56″ (116 mm)

Minimum Media Width: 0.39" (10 mm)

Maximum Outer Diameter: 8" (203.2 mm)Inner Diameter: 3" (76.2 mm)


Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Cutter: 0.79″ (20 mm)

Media Thickness:

Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Ribbon:
 Max Ribbon Length: 1968’ (600 m) Max Ribbon Width: 4.56″ (116 mm)
Max Outer Diameter: 3.31″ (84 mm) Inner Diameter: 1″ (25.4 mm)
Ink side: both In and Out
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

15 kgs （ 33.07 lbs)

Dimensions:

W 11.3″ (286 mm) × D 17.6″ (448 mm) × H 10.7″ (271 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.




Optional Items

*Accessories shall be installed at the factory

RFID Verifier**:

External-mount module (Only available for RFID models)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cutters:
 Type              Rotary Cutter

Model           A150S     A400S     A400P

Max. Cut Width      120 mm    120 mm    120 mm

Min. Cut Length      20 mm     20 mm    20 mm

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm  0.35 mm


Cuts Guaranteed      600,000    600,000    600,000

Cut Speed          0.8 sec/cut  0.8 sec/cut   0.15 sec/cut




POSTEK TX Exp Series

Industrial RFID|Barcode Label Printer

Model:
TX3r Exp
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 300 dpi
Max Print Speed: 12 ips
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
HEAT™ Level①:
 Ⅰ

RFID Encoder:

Supports UHF EPC Gen 2, ISO 18000-6C protocols

Media Roll:

Maximum Media Width: 4.56″ (116 mm)

Minimum Media Width: 0.39" (10 mm)

Maximum Outer Diameter: 8" (203.2 mm)Inner Diameter: 3" (76.2 mm)


Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Cutter: 0.79″ (20 mm)

Media Thickness:

Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Ribbon:
 Max Ribbon Length: 1968’ (600 m) Max Ribbon Width: 4.56″ (116 mm)
Max Outer Diameter: 3.31″ (84 mm) Inner Diameter: 1″ (25.4 mm)
Ink side: both In and Out
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

15 kgs （ 33.07 lbs)

Dimensions:

W 11.3″ (286 mm) × D 17.6″ (448 mm) × H 10.7″ (271 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.




Optional Items

*Accessories shall be installed at the factory

RFID Verifier**:

External-mount module (Only available for RFID models)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cutters:
 Type              Rotary Cutter

Model           A150S     A400S     A400P

Max. Cut Width      120 mm    120 mm    120 mm

Min. Cut Length      20 mm     20 mm    20 mm

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm  0.35 mm


Cuts Guaranteed      600,000    600,000    600,000

Cut Speed          0.8 sec/cut  0.8 sec/cut   0.15 sec/cut




POSTEK TX Exp Series

Industrial RFID|Barcode Label Printer

Model:
TX6r Exp
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 600 dpi
Max Print Speed: 16 ips
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
HEAT™ Level①:
 Ⅰ

RFID Encoder:

Supports UHF EPC Gen 2, ISO 18000-6C protocols

Media Roll:

Maximum Media Width: 4.56″ (116 mm)

Minimum Media Width: 0.39" (10 mm)

Maximum Outer Diameter: 8" (203.2 mm)Inner Diameter: 3" (76.2 mm)


Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Cutter: 0.79″ (20 mm)

Media Thickness:

Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Ribbon:
 Max Ribbon Length: 1968’ (600 m) Max Ribbon Width: 4.56″ (116 mm)
Max Outer Diameter: 3.31″ (84 mm) Inner Diameter: 1″ (25.4 mm)
Ink side: both In and Out
Media Sensor:
 Upper reflective: detects black marks on print side
Lower reflective: detects black marks on back side
Transmissive: detects gaps, notches, holes
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

15 kgs （ 33.07 lbs)

Dimensions:

W 11.3″ (286 mm) × D 17.6″ (448 mm) × H 10.7″ (271 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.




Optional Items

*Accessories shall be installed at the factory

RFID Verifier**:

External-mount module (Only available for RFID models)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cutters:
 Type              Rotary Cutter

Model           A150S     A400S     A400P

Max. Cut Width      120 mm    120 mm    120 mm

Min. Cut Length      20 mm     20 mm    20 mm

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm  0.35 mm


Cuts Guaranteed      600,000    600,000    600,000

Cut Speed          0.8 sec/cut  0.8 sec/cut   0.15 sec/cut




POSTEK TX Exp Series

Industrial RFID|Barcode Label Printer

Model: TX2r Exp（Max)
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 200 dpi
Max Print Speed: 16 ips
Max Print Width: 4.09″ (104 mm)
Max Print Length: 196″ (5000 mm)
Memory
 8 MB FLASH ROM, 16 MB SDRAM
HEAT™ Level①:
 Ⅰ
RFID:
 Integrated UHF Reader/ Encoder, EPC Gen 2 Class 1/ ISO 18000-6C
Media:
 Width: 4.56″(116 mm) max., 0.39″(10 mm) min.
OD: 8″(203.2 mm) max.,

ID: 1.5″(38 mm) / 3″(76.2mm)

Media Thickness:

Regular Barcode Label Printer and Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Minimum Label Length:

Tear-off: 0.20″ (5 mm)

Cutter:
A150/A400: 0.79″ (20 mm)

Ribbon:
 Width: 4.65″(118 mm) max., length: 1968′ (600 m) max.,
OD: 3.3″(84 mm) max., ID: 1″(25.4 mm) min., Ink side: both In and Out
Media Sensor:
 Upper Reflective (Adjustable), Lower Reflective (Adjustable) and Transmissive (Adjustable)
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc. 2D Barcode: MaxiCode, PDF417, Data Matrix, QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100 M Adaptive Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface (Optional)

Power Source:

100 ~ 240 V , 50/60 Hz

Weight:

Without peeler: 37.9 lbs (17.2 kgs)
With peeler: 41.45 lbs (18.8 kgs)

Dimensions:

Without peeler: W 11.3″ (286 mm) x D 17.6″ (448 mm) x H 10.7″ (271 mm)
With peeler: W 11.3″ (286 mm) x D 17.6″ (448 mm) x H 11.4″ (289 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing

① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.




Optional Items

*Accessories shall be installed at the factory

RFID Verifier**:

External-mount module (Only available for RFID models)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cutters:
 Type              Rotary Cutter

Model           A150S     A400S     A400P

Max. Cut Width      120 mm    120 mm    120 mm

Min. Cut Length      20 mm     20 mm    20 mm

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm  0.35 mm


Cuts Guaranteed      600,000    600,000    600,000

Cut Speed          0.8 sec/cut  0.8 sec/cut   0.15 sec/cut




POSTEK TX Exp Series

Industrial RFID|Barcode Label Printer

Model: TX3r Exp（Max)
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 300 dpi
Max Print Speed: 12 ips
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
Memory
 8 MB FLASH ROM, 16 MB SDRAM
HEAT™ Level①:
 Ⅰ
RFID:
 Integrated UHF Reader/ Encoder, EPC Gen 2 Class 1/ ISO 18000-6C
Media:
 Width: 4.56″(116 mm) max., 0.39″(10 mm) min.
OD: 8″(203.2 mm) max.,

ID: 1.5″(38 mm) / 3″(76.2mm)

Media Thickness:

Regular Barcode Label Printer and Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Minimum Label Length:

Tear-off: 0.20″ (5 mm)

Cutter:
A150/A400: 0.79″ (20 mm)

Ribbon:
 Width: 4.65″(118 mm) max., length: 1968′ (600 m) max.,
OD: 3.3″(84 mm) max., ID: 1″(25.4 mm) min., Ink side: both In and Out
Media Sensor:
 Upper Reflective (Adjustable), Lower Reflective (Adjustable) and Transmissive (Adjustable)
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc. 2D Barcode: MaxiCode, PDF417, Data Matrix, QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100 M Adaptive Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface (Optional)

Power Source:

100 ~ 240 V , 50/60 Hz

Weight:

Without peeler: 37.9 lbs (17.2 kgs)
With peeler: 41.45 lbs (18.8 kgs)

Dimensions:

Without peeler: W 11.3″ (286 mm) x D 17.6″ (448 mm) x H 10.7″ (271 mm)
With peeler: W 11.3″ (286 mm) x D 17.6″ (448 mm) x H 11.4″ (289 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing

① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.




Optional Items

*Accessories shall be installed at the factory

RFID Verifier**:

External-mount module (Only available for RFID models)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cutters:
 Type              Rotary Cutter

Model           A150S     A400S     A400P

Max. Cut Width      120 mm    120 mm    120 mm

Min. Cut Length      20 mm     20 mm    20 mm

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm  0.35 mm


Cuts Guaranteed      600,000    600,000    600,000

Cut Speed          0.8 sec/cut  0.8 sec/cut   0.15 sec/cut




POSTEK TX Exp Series

Industrial RFID|Barcode Label Printer

Model: TX6r Exp（Max)
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 600 dpi
Max Print Speed: 6 ips
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
Memory
 8 MB FLASH ROM, 16 MB SDRAM
HEAT™ Level①:
 Ⅰ
RFID:
 Integrated UHF Reader/ Encoder, EPC Gen 2 Class 1/ ISO 18000-6C
Media:
 Width: 4.56″(116 mm) max., 0.39″(10 mm) min.
OD: 8″(203.2 mm) max.,

ID: 1.5″(38 mm) / 3″(76.2mm)

Media Thickness:

Regular Barcode Label Printer and Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Minimum Label Length:

Tear-off: 0.20″ (5 mm)

Cutter:
A150/A400: 0.79″ (20 mm)

Ribbon:
 Width: 4.65″(118 mm) max., length: 1968′ (600 m) max.,
OD: 3.3″(84 mm) max., ID: 1″(25.4 mm) min., Ink side: both In and Out
Media Sensor:
 Upper Reflective (Adjustable), Lower Reflective (Adjustable) and Transmissive (Adjustable)
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc. 2D Barcode: MaxiCode, PDF417, Data Matrix, QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100 M Adaptive Ethernet, USB DEVICE 2.0, USB HOST, General I/O Signal Interface (Optional)

Power Source:

100 ~ 240 V , 50/60 Hz

Weight:

Without peeler: 37.9 lbs (17.2 kgs)
With peeler: 41.45 lbs (18.8 kgs)

Dimensions:

Without peeler: W 11.3″ (286 mm) x D 17.6″ (448 mm) x H 10.7″ (271 mm)
With peeler: W 11.3″ (286 mm) x D 17.6″ (448 mm) x H 11.4″ (289 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing

① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.




Optional Items

*Accessories shall be installed at the factory

RFID Verifier**:

External-mount module (Only available for RFID models)

Wireless Module*:

WIFI IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz, Bluetooth 5.0

Cutters:
 Type              Rotary Cutter

Model           A150S     A400S     A400P

Max. Cut Width      120 mm    120 mm    120 mm

Min. Cut Length      20 mm     20 mm    20 mm

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm  0.35 mm


Cuts Guaranteed      600,000    600,000    600,000

Cut Speed          0.8 sec/cut  0.8 sec/cut   0.15 sec/cut
