POSTEK OX Series

Industrial
RFID|Barcode Label Printer

A BLEND OF
ART AND TECHNOLOGY

Model
OX2
OX3
OX6
OX218
OX318

RFID
OX2r
OX3r
OX6r
OX218r
OX318r

Highest print speed

18ips

Maximum print width

104mm

Maximum print length

5000mm

Printing resolution

203dpi
more specs

Highest print speed

14ips

Maximum print width

105.6mm

Maximum print length

5000mm

Printing resolution

300dpi
more specs

Highest print speed

7ips

Maximum print width

105.6mm

Maximum print length

5000mm

Printing resolution

600dpi
more specs

Highest print speed

12ips

Maximum print width

168mm

Maximum print length

3000mm

Printing resolution

203dpi
more specs

Highest print speed

10ips

Maximum print width

168mm

Maximum print length

3000mm

Printing resolution

300dpi
more specs

Highest print speed

18ips

Maximum print width

104mm

Maximum print length

5000mm

Printing resolution

203dpi
more specs

Highest print speed

14ips

Maximum print width

105.6mm

Maximum print length

5000mm

Printing resolution

300dpi
more specs

Highest print speed

7ips

Maximum print width

105.6mm

Maximum print length

5000mm

Printing resolution

600dpi
more specs

Highest print speed

12ips

Maximum print width

168mm

Maximum print length

3000mm

Printing resolution

203dpi
more specs

Highest print speed

10ips

Maximum print width

168mm

Maximum print length

3000mm

Printing resolution

300dpi
more specs
A BLEND OF ART AND TECH

DESIGN

The great Ox, a rugged symbol of strength and reliability. When faced with hard tasks, the Ox provides endurance.

Due to its unique characteristic, the Ox as a totem animal usually belongs to those who always shows determination perseverance regardless of the circumstances.

The Ox totem has inspired the POSTEK OX series printer's unique and vigorous design. With ingenuity, exquisite, and robust product design endowed in every detail.

INNOVATION

Real-time Visual Verification

Thanks to robust deep-learning-based algorithms, the fully integrated visual verification system on the OX series printers can read and grade 1D & 2D barcodes to ANSI/ISO standards, verify text data, and check the integrity of labels. If for any reason the printout doesn't meet the set standard, the printer will immediately notify relevant personals through the LCD screen and the accompanying light system.

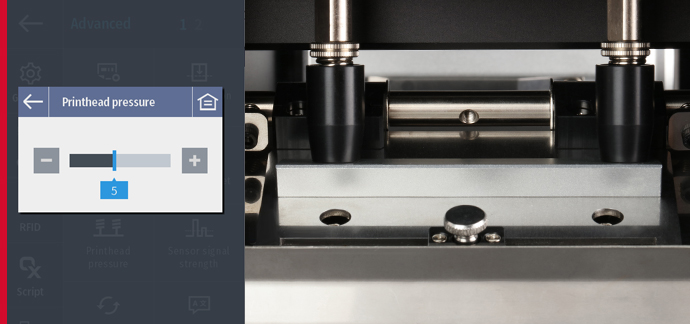

Automatic Precision Printhead Pressure Adjustment

Aside from soft close, this system can also automatically control printhead pressure. What used to be a labor-intensive task for only the most skilled technician can now be done through a few taps on the LCD screen.

HEAT ™ Technology

Powered by one of the most advanced quad-core applications processors, the POSTEK OX series printer takes full advantage of the cutting-edge HEAT™ printing technology, providing the best in class printout qualities. Combined with a 4.5-inch touchscreen control panel and a number of new mechanical innovations, the OX series printer unveils a brand-new user experience unparalleled in the on-demand label printing industry.

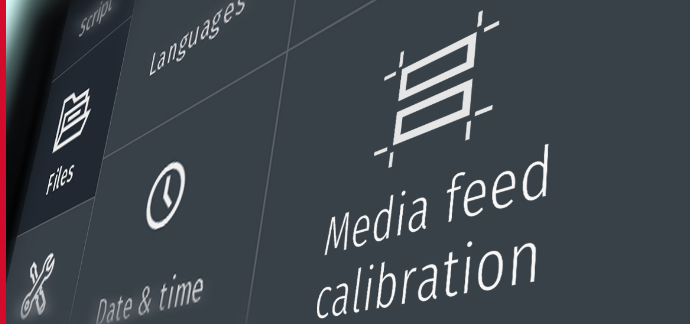

Advanced Dynamic Adaptive Precision Tuning (ADAPT™)

Say goodbye to poor printout quality due to wear and tear on the platen roller, changing of media thickness, or different friction coefficient of media. With the innovative precise calibration algorithm, the best printout quality in the industry can be achieved with a simple automatic calibration process. Providing consistent, precise printout while drastically cutting back on the need for maintenance.

PERFORMANCE

Available in 200 dpi, 300 dpi and 600 dpi resolution, with POSTEK's signature ease-of-use features and a top print speed of 18ips, the POSTEK OX series printer is the ultimate choice for your printing needs. Constant tension applied to roll media with a maximum 9-inch outer diameter, along with ultra-precision parts throughout the media transmission system, the OX series printer brings the media positioning accuracy to a new level, e.g., the media positioning tolerance can be as low as ±0.20 mm when printing with low speed and optimized media, ribbon selection. If the application requires a high-volume print job, an optional internal rewinder can take up an 8-inch roll of printed media for user convenience and easy storage.

Fixed Print Engine Frame

A unique, patented aluminum print engine frame underpins the OX series printer, along with a new all-metal structure, to deliver unparalleled stability and durability for the industrial-grade equipment with uncompromised convenience of consumables loading.

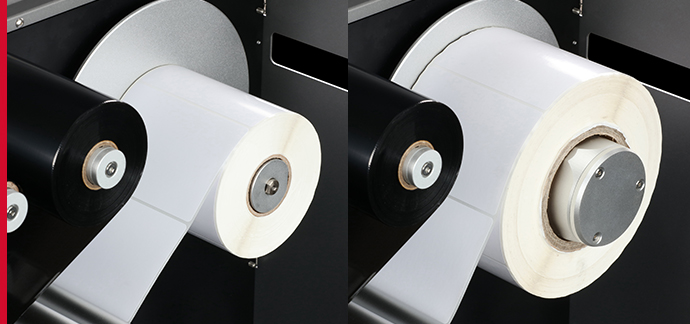

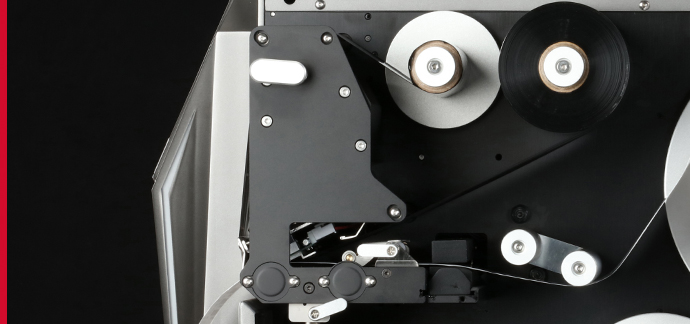

Intuitive Media Loading

The fixed print engine frame structure of the OX series printer offers not only premier reliability, but intuitive operation as well. The OX series printer features a horizontal media feeding path on the print engine module, making the media loading process natural and straightforward without any sacrifices in robustness.

Optimal Ribbon Tension Adjustment Scheme

This patent-pending, user-friendly method has brought unprecedented simplicity and convenience. Through the Allen wrench bundled with the printer, users can easily finetune the ribbon tension with minimal training or prior experiences.

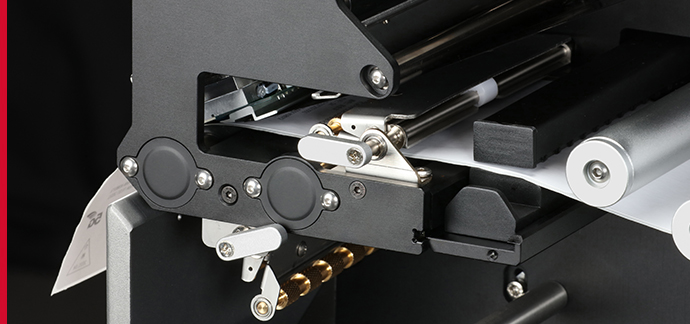

Innovative Two Roller Design

In addition to the main printing platen roller, a second platen roller is available to further enhance the printing experience. When the printer is in Peel-Off mode, the synchronous second platen roller is the key to the smooth and precise peeling experience that made the OX series printers best choice for the application.

Smart Printer that Saves Ribbon

When equipped with the Ribbon Saving Kit, the OX series printer automatically lifts the printhead during the empty portions of the media under predefined conditions and locks down to print again when needed. Eliminating the consumption of ribbon without printing and extends printhead life span by putting an end to unnecessary wear and tear.

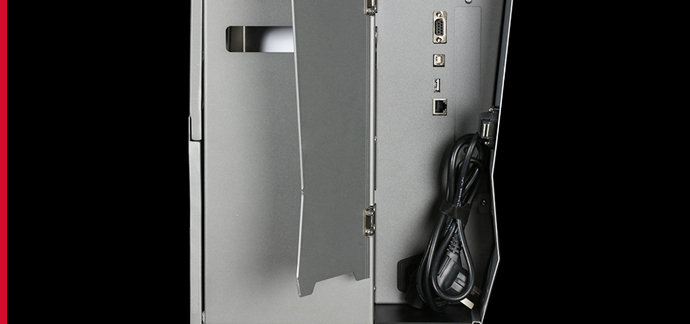

Cable Storage Space

Hiding in plain sight, the OX series printer features a large cable storage space on the back of the printer. The system provides sorting, storage, and protection to the cable and presents a clean and orderly working environment. With the OX series printer, we integrated user experience centered designs into every detail of the product. An integrated intelligent lighting system will provide indication of space and status of the printer, as well as transforming the printing experience to be more straightforward and enjoyable.

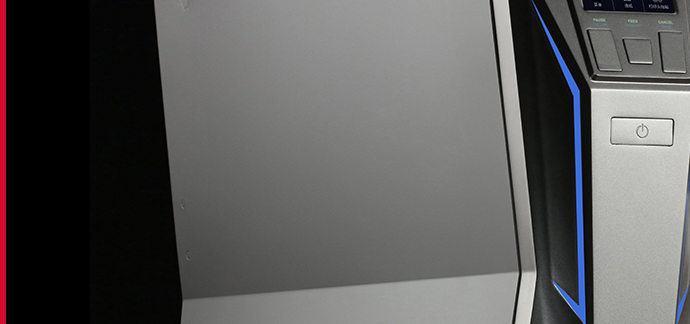

Soft Close Printhead

If you hate to slam the doors on your beloved car just to engage the locks, then the idea of slamming the printhead module just to lock it into place can be just as irritating. The frustration with slamming the printhead and the need to double check just make sure the lock is engaged is a thing of the past with the OX series. The printhead of the OX series printer can close softly and quietly through the push of a button, providing convenience and consistency at your fingertips.

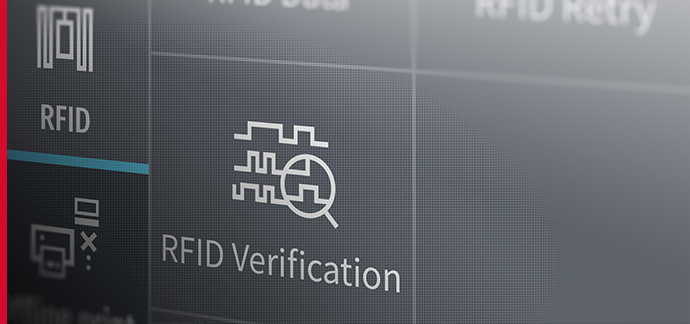

RFID Verification

The optional RFID verifitcation package detects errors/mismatches immediately. Marking the erroneous label or tag and reprinting with the same data automatically.


Performance built-in

The TX series features an industry-leading four-core 1.8GHz MPU and a powerful GPU with 2D/3D graphics hardware acceleration. Providing ample processing power for consistent, high-demand print jobs as well
as extensively customized software applications.





Built it, Store it, Run it

With more than 2G of RAM and 8G of flash, the TX series allows for never-before-seen use cases where the printer not only handles the majority of the processing, but data storing as well. Easily store tens of thousands of data files like Excel, label templates, fonts, and graphics directly on the printer, and print away with just a few taps on the printer’s screen.


Cuts the Cords, Connect the Freedom

Ditch the tangle of cords and revel in the freedom offered by the integrated Bluetooth/Wi-Fi module. Seamlessly connect to and oversee your printer ensemble from any location that suits you. Streamline your workflow and take control without being physically tethered to the printers.



OX Script


Printing without a computer have been possible for a few decades. However, it requires a pre-made templates to be stored on the printer and the template only have one or two parameter that can be modified in real time. With OX script, a POSTEK scripting language based off of python, templates are a thing of the past. Based on various pre-set conditions and requirements, every element of every label in every print job can be different from the one before it and the one after it. Who sets the conditions then? You may ask, and the answer is you do. OX scripts give you the freedom and flexibility to fully customize the printing script to best fit your needs.


OX Script, the new standard of customization

Through OX Script, one can easily create complex and extensive custom software for the printer. Enabling use cases never before seen. From reading/writing to cloud databases directly from the printer, accessing files stored locally on the printer, and creating User Interfaces specific to the application, OX Script offers an unprecedented level of freedom and customization. Breaking free of the requirement of a PC for complex use cases.

One Screen to do it all

Equipped with a 4.5-inch colored touch screen and a user-friendly interface, printing can be started directly using the printer’s screen. The big screen also allows for an incorporated keyboard, making it easy for real-time user input.

More information
Product support

POSTEK OX Series

Industrial RFID|Barcode Label Printer

Model:
OX2
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 203 dpi
Wireless Module:
 Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz)

Bluetooth 5.0

Max Print Speed: 18 ips
Max Print Width: 4.09″ (104 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39″ (10 mm)

Maximum Outer Diameter: 9″ (228.6 mm)

Inner Diameter: 1.5” (38mm) / 3” (76.2mm)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off: 0.47″ (12 mm), with peeled-label detect; 0.2″ (5 mm), w/o peeled-label detect

Cutter: 0.79″ (20 mm)

Rewind: 0.2″ (5 mm)

Ribbon:
 Maximum Length: 1968′ (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm)

Ink side: both In and Out

Media Sensor:

Upper reflective: detects black mark on face side

Lower reflective: detects black mark on back side

Transmissive: detects gap, notch, holes

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

21.4 kgs （ 47.08 lbs)

Dimensions:

W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.



Optional Items

*Accessories shall be installed at the factory

Visual Verifier*:


There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1. Verifies 1D & 2D barcode data.

2. Verifies 1D & 2D barcode data and evaluates printed barcode symbologies.

3. Verifies 1D & 2D barcode data, evaluates printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Automatic Peeler*: A dedicated set of peeling rollers, along with an internal liner rewinder
Internal Rewinder*: Maximum Rewind Roll Diameter: 8" (203 mm)
Ribbon Saving Kit*:
 Includes the following items:

1. The second platen roller & pinch roller assembly.
2. The ribbon take-up clutch.
(An internal or external rewinder may be required to use the Ribbon Saving function. The media will be advanced by the second platen roller when the printhead lifts to save the ribbon. In this case, a rewinder can help keep the media flat without bending or buckling when passing through the printhead area. Please contact a qualified professional to confirm.)

Cutters:
 Type             Rotary Cutter            

Model           A150S     A400S        

Max. Cut Width      120 mm    120 mm       

Min. Cut Length      20 mm     20 mm       

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm     


Cut Through Adhesive    Yes     Yes       

Cuts Guaranteed      600,000    600,000       




POSTEK OX Series

Industrial RFID|Barcode Label Printer

Model:
OX3
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 300 dpi
Wireless Module:
 Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz)

Bluetooth 5.0

Max Print Speed: 14 ips
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39″ (10 mm)

Maximum Outer Diameter: 9″ (228.6 mm)

Inner Diameter: 1.5” (38mm) / 3” (76.2mm)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off: 0.47″ (12 mm), with peeled-label detect; 0.2″ (5 mm), w/o peeled-label detect

Cutter: 0.79″ (20 mm)

Rewind: 0.2″ (5 mm)

Ribbon:
 Maximum Length: 1968′ (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm)

Ink side: both In and Out

Media Sensor:

Upper reflective: detects black mark on face side

Lower reflective: detects black mark on back side

Transmissive: detects gap, notch, hole

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

21.4 kgs （ 47.08 lbs)

Dimensions:

W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.



Optional Items

*Accessories shall be installed at the factory

Visual Verifier*:


There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2. Verifies 1D & 2D barcode data and evaluates printed barcode symbologies.

3. Verifies 1D & 2D barcode data, evaluates printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Automatic Peeler*: A dedicated set of peeling rollers, along with an internal liner rewinder
Internal Rewinder*: Maximum Rewind Roll Diameter: 8" (203 mm)
Ribbon Saving Kit*:
 Includes the following items:

1. The second platen roller & pinch roller assembly.
2. The ribbon take-up clutch.
(An internal or external rewinder may be required to use the Ribbon Saving function. The media will be advanced by the second platen roller when the printhead lifts to save the ribbon. In this case, a rewinder can help keep the media flat without bending or buckling when passing through the printhead area. Please contact a qualified professional to confirm.)

Cutters:
 Type             Rotary Cutter            

Model           A150S     A400S        

Max. Cut Width      120 mm    120 mm       

Min. Cut Length      20 mm     20 mm       

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm     


Cut Through Adhesive    Yes     Yes       

Cuts Guaranteed      600,000    600,000       




POSTEK OX Series

Industrial RFID|Barcode Label Printer

Model:
OX6
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 600 dpi
Wireless Module:
 Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz)

Bluetooth 5.0

Max Print Speed: 7 ips
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39″ (10 mm)

Maximum Outer Diameter: 9″ (228.6 mm)

Inner Diameter: 1.5” (38mm) / 3” (76.2mm)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off: 0.47″ (12 mm), with peeled-label detect; 0.2″ (5 mm), w/o peeled-label detect

Cutter: 0.79″ (20 mm)

Rewind: 0.2″ (5 mm)

Ribbon:
 Maximum Length: 1968′ (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm)

Ink side: both In and Out

Media Sensor:
 Upper reflective: detects black mark on face sideLower reflective: detects black mark on back sideTransmissive: detects gap, notch, hole
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

21.4 kgs （ 47.08 lbs)

Dimensions:

W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.




Optional Items

*Accessories shall be installed at the factory

Visual Verifier* :

There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1. Verifies 1D & 2D barcode data.

2. Verifies 1D & 2D barcode data and evaluates printed barcode symbologies.

3. Verifies 1D & 2D barcode data, evaluates printed barcode symbologies, and inspects print defects.

Automatic Peeler* :
 A dedicated set of peeling rollers, along with an internal liner rewinder
Internal Rewinder* : Maximum Rewind Roll Diameter: 8" (203 mm)
Ribbon Saving Kit*:
 Includes the following items:

1. The second platen roller & pinch roller assembly.
2. The ribbon take-up clutch.
(An internal or external rewinder may be required to use the Ribbon Saving function. The media will be advanced by the second platen roller when the printhead lifts to save the ribbon. In this case, a rewinder can help keep the media flat without bending or buckling when passing through the printhead area. Please contact a qualified professional to confirm.)

Cutters:
 Type             Rotary Cutter            

Model           A150S     A400S        

Max. Cut Width      120 mm    120 mm       

Min. Cut Length      20 mm     20 mm       

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm     


Cut Through Adhesive    Yes     Yes       

Cuts Guaranteed      600,000    600,000       




POSTEK OX Series

Industrial RFID|Barcode Label Printer

Model:
OX218
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 203 dpi
Wireless Module:
 Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz)

Bluetooth 5.0

Max Print Speed: 12 ips
Max Print Width: 6.6″ (168 mm)
Max Print Length: 118″ (3000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:

Maximum Media Width: 7.09″ (180 mm)

Minimum Media Width: 1.18″ (30 mm)

Maximum Outer Diameter: 9″ (228.6 mm)

Inner Diameter: 1.5” (38mm) / 3” (76.2mm)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Minimum Label Length:

Tear-off: 0.59″ (15 mm)

Peel-off: 0.47″ (12 mm), with peeled-label detect; 0.2″ (5 mm), w/o peeled-label detect

Rewind: 0.2″ (5 mm)

Ribbon:
 Maximum Length: 1968′ (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 1.18" to 6.93"(30 mm to 176 mm)

Ink side: both In and Out

Media Sensor:

Upper reflective: detects black mark on face side

Lower reflective: detects black mark on back side

Transmissive: detects gap, notch, hole

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

21.4 kgs （ 47.08 lbs)

Dimensions:

W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.



Optional Items

*Accessories shall be installed at the factory

Visual Verifier*:


There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2. Verifies 1D & 2D barcode data and evaluates printed barcode symbologies.

3. Verifies 1D & 2D barcode data, evaluates printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Automatic Peeler*: A dedicated set of peeling rollers, along with an internal liner rewinder
Internal Rewinder*: Maximum Rewind Roll Diameter: 8" (203 mm)
Ribbon Saving Kit*:
 Includes the following items:

1. The second platen roller & pinch roller assembly.
2. The ribbon take-up clutch.
(An internal or external rewinder may be required to use the Ribbon Saving function. The media will be advanced by the second platen roller when the printhead lifts to save the ribbon. In this case, a rewinder can help keep the media flat without bending or buckling when passing through the printhead area. Please contact a qualified professional to confirm.)





POSTEK OX Series

Industrial RFID|Barcode Label Printer

Model:
OX318
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 300 dpi

Wireless Module：

Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz)

Bluetooth 5.0

Max Print Speed: 10 ips
Max Print Width: 6.6″ (168 mm)
Max Print Length: 118″ (3000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
*HEAT™ Level:
 Ⅰ
Media Roll:

Maximum Media Width: 7.09″ (180 mm)

Minimum Media Width: 1.18″ (30 mm)

Maximum Outer Diameter: 9″ (228.6 mm)

Inner Diameter: 1.5” (38mm) / 3” (76.2mm)

Media Thickness: 0.0024" ~ 0.012" (0.06 ~ 0.3 mm), including liner

Minimum Label Length:

Tear-off: 0.59″ (15 mm)

Peel-off: 0.47″ (12 mm), with peeled-label detect; 0.2″ (5 mm), w/o peeled-label detect

Rewind: 0.2″ (5 mm)

Ribbon:
 Maximum Length: 1968′ (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 1.18" to 6.93"(30 mm to 176 mm)

Ink side: both In and Out

Media Sensor:

Upper reflective: detects black mark on face side

Lower reflective: detects black mark on back side

Transmissive: detects gap, notch, hole

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

21.4 kgs （ 47.08 lbs)

Dimensions:

W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


* HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.



Optional Items

*Accessories shall be installed at the factory

 

Visual Verifier*:


There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2. Verifies 1D & 2D barcode data and evaluates printed barcode symbologies.

3. Verifies 1D & 2D barcode data, evaluates printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Automatic Peeler*: A dedicated set of peeling rollers, along with an internal liner rewinder
Internal Rewinder*: Maximum Rewind Roll Diameter: 8" (203 mm)
Ribbon Saving Kit*:
 Includes the following items:

1. The second platen roller & pinch roller assembly.
2. The ribbon take-up clutch.
(An internal or external rewinder may be required to use the Ribbon Saving function. The media will be advanced by the second platen roller when the printhead lifts to save the ribbon. In this case, a rewinder can help keep the media flat without bending or buckling when passing through the printhead area. Please contact a qualified professional to confirm.)

POSTEK OX Series

Industrial RFID|Barcode Label Printer

Model:
OX2r
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 203 dpi
Wireless Module:
 Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz)
Bluetooth 5.0
Max Print Speed: 18 ips
Max Print Width: 4.09″ (104 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
HEAT™ Level①:
 Ⅰ

RFID Encoder:

Supports UHF EPC Gen 2, ISO 18000-6C protocols

Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39″ (10 mm)

Maximum Outer Diameter: 9″ (228.6 mm)

Inner Diameter: 1.5” (38mm) / 3” (76.2mm)

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off: 0.47″ (12 mm), with peeled-label detect; 0.2″ (5 mm), w/o peeled-label detect

Cutter: 0.79″ (20 mm)

Rewind: 0.2″ (5 mm)

Media Thickness:

Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Ribbon:
 Maximum Length: 1968′ (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm)

Ink side: both In and Out

Media Sensor:

Upper reflective: detects black mark on face side

Lower reflective: detects black mark on back side

Transmissive: detects gap, notch, holes

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

21.4 kgs （ 47.08 lbs)

Dimensions:

W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.




Optional Items

*Accessories shall be installed at the factory

 

RFID Verifier*:

External-mount module (Only available for RFID models)

Visual Verifier*:

There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2. Verifies 1D & 2D barcode data and evaluates printed barcode symbologies.

3. Verifies 1D & 2D barcode data, evaluates printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Automatic Peeler*: A dedicated set of peeling rollers, along with an internal liner rewinder
Internal Rewinder*: Maximum Rewind Roll Diameter: 8" (203 mm)
Ribbon Saving Kit*:
 Includes the following items:

1. The second platen roller & pinch roller assembly.
2. The ribbon take-up clutch.
(An internal or external rewinder may be required to use the Ribbon Saving function. The media will be advanced by the second platen roller when the printhead lifts to save the ribbon. In this case, a rewinder can help keep the media flat without bending or buckling when passing through the printhead area. Please contact a qualified professional to confirm.)

Cutters:
 Type             Rotary Cutter            

Model           A150S     A400S        

Max. Cut Width      120 mm    120 mm       

Min. Cut Length      20 mm     20 mm       

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm     


Cut Through Adhesive    Yes     Yes       

Cuts Guaranteed      600,000    600,000       




POSTEK OX Series

Industrial RFID|Barcode Label Printer

Model:
OX3r
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 300 dpi
Wireless Module:
 Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz)
Bluetooth 5.0
Max Print Speed: 14 ips
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
HEAT™ Level①:
 Ⅰ

RFID Encoder:

Supports UHF EPC Gen 2, ISO 18000-6C protocols

Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39″ (10 mm)

Maximum Outer Diameter: 9″ (228.6 mm)

Inner Diameter: 1.5” (38mm) / 3” (76.2mm)

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off: 0.47″ (12 mm), with peeled-label detect; 0.2″ (5 mm), w/o peeled-label detect

Cutter: 0.79″ (20 mm)

Rewind: 0.2″ (5 mm)

Media Thickness:

Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Ribbon:
 Maximum Length: 1968′ (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm)

Ink side: both In and Out

Media Sensor:

Upper reflective: detects black mark on face side

Lower reflective: detects black mark on back side

Transmissive: detects gap, notch, hole

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

21.4 kgs （ 47.08 lbs)

Dimensions:

W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.




Optional Items

*Accessories shall be installed at the factory

RFID Verifier*:

External-mount module (Only available for RFID models)

Visual Verifier*:

There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2. Verifies 1D & 2D barcode data and evaluates printed barcode symbologies.

3. Verifies 1D & 2D barcode data, evaluates printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Automatic Peeler*: A dedicated set of peeling rollers, along with an internal liner rewinder
Internal Rewinder*: Maximum Rewind Roll Diameter: 8" (203 mm)
Ribbon Saving Kit*:
 Includes the following items:

1. The second platen roller & pinch roller assembly.
2. The ribbon take-up clutch.
(An internal or external rewinder may be required to use the Ribbon Saving function. The media will be advanced by the second platen roller when the printhead lifts to save the ribbon. In this case, a rewinder can help keep the media flat without bending or buckling when passing through the printhead area. Please contact a qualified professional to confirm.)

Cutters:
 Type             Rotary Cutter            

Model           A150S     A400S        

Max. Cut Width      120 mm    120 mm       

Min. Cut Length      20 mm     20 mm       

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm     


Cut Through Adhesive    Yes     Yes       

Cuts Guaranteed      600,000    600,000       




POSTEK OX Series

Industrial RFID|Barcode Label Printer

Model:
OX6r
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 600 dpi
Wireless Module:
 Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz)
Bluetooth 5.0
Max Print Speed: 7 ips
Max Print Width: 4.16″ (105.7 mm)
Max Print Length: 196″ (5000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
HEAT™ Level①:
 Ⅰ

RFID Encoder:

Supports UHF EPC Gen 2, ISO 18000-6C protocols

Media Roll:

Maximum Media Width: 4.72″ (120 mm)

Minimum Media Width: 0.39″ (10 mm)

Maximum Outer Diameter: 9″ (228.6 mm)

Inner Diameter: 1.5” (38mm) / 3” (76.2mm)

Minimum Label Length:

Tear-off: 0.2″ (5 mm)

Peel-off: 0.47″ (12 mm), with peeled-label detect; 0.2″ (5 mm), w/o peeled-label detect

Cutter: 0.79″ (20 mm)

Rewind: 0.2″ (5 mm)

Media Thickness:

Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Ribbon:
 Maximum Length: 1968′ (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 0.79" to 4.33"(20 mm to 110 mm)

Ink side: both In and Out

Media Sensor:
 Upper reflective: detects black mark on face sideLower reflective: detects black mark on back sideTransmissive: detects gap, notch, hole
Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

21.4 kgs （ 47.08 lbs)

Dimensions:

W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing


① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.




Optional Items

*Accessories shall be installed at the factory

RFID Verifier*:

External-mount module (Only available for RFID models)

Visual Verifier*:

There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2. Verifies 1D & 2D barcode data and evaluates printed barcode symbologies.

3. Verifies 1D & 2D barcode data, evaluates printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Automatic Peeler*: A dedicated set of peeling rollers, along with an internal liner rewinder
Internal Rewinder*: Maximum Rewind Roll Diameter: 8" (203 mm)
Ribbon Saving Kit*:
 Includes the following items:

1. The second platen roller & pinch roller assembly.
2. The ribbon take-up clutch.
(An internal or external rewinder may be required to use the Ribbon Saving function. The media will be advanced by the second platen roller when the printhead lifts to save the ribbon. In this case, a rewinder can help keep the media flat without bending or buckling when passing through the printhead area. Please contact a qualified professional to confirm.)

Cutters:
 Type             Rotary Cutter            

Model           A150S     A400S        

Max. Cut Width      120 mm    120 mm       

Min. Cut Length      20 mm     20 mm       

Cut Thickness 

(white cardboard paper)  0.20 mm   0.20 - 0.35 mm     


Cut Through Adhesive    Yes     Yes       

Cuts Guaranteed      600,000    600,000       




POSTEK OX Series

Industrial RFID|Barcode Label Printer

Model:
OX218r
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 203 dpi
Wireless Module:
 Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz)
Bluetooth 5.0
Max Print Speed: 12 ips
Max Print Width: 6.6″ (168 mm)
Max Print Length: 118″ (3000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
HEAT™ Level①:
 Ⅰ

RFID Encoder:

Supports UHF EPC Gen 2, ISO 18000-6C protocols

Media Roll:

Maximum Media Width: 7.09″ (180 mm)

Minimum Media Width: 1.18″ (30 mm)

Maximum Outer Diameter: 9″ (228.6 mm)

Inner Diameter: 1.5” (38mm) / 3” (76.2mm)

Minimum Label Length:

Tear-off: 0.59″ (15 mm)

Peel-off: 0.47″ (12 mm), with peeled-label detect; 0.2″ (5 mm), w/o peeled-label detect

Rewind: 0.2″ (5 mm)

Media Thickness:

Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Ribbon:
 Maximum Length: 1968′ (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 1.18" to 6.93"(30 mm to 176 mm)

Ink side: both In and Out

Media Sensor:

Upper reflective: detects black mark on face side

Lower reflective: detects black mark on back side

Transmissive: detects gap, notch, hole

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

21.4 kgs （ 47.08 lbs)

Dimensions:

W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing



① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.




Optional Items

*Accessories shall be installed at the factory

 

RFID Verifier*:

External-mount module (Only available for RFID models)

Visual Verifier*:

There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2. Verifies 1D & 2D barcode data and evaluates printed barcode symbologies.

3. Verifies 1D & 2D barcode data, evaluates printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Automatic Peeler*: A dedicated set of peeling rollers, along with an internal liner rewinder
Internal Rewinder*: Maximum Rewind Roll Diameter: 8" (203 mm)
Ribbon Saving Kit*:
 Includes the following items:

1. The second platen roller & pinch roller assembly.
2. The ribbon take-up clutch.
(An internal or external rewinder may be required to use the Ribbon Saving function. The media will be advanced by the second platen roller when the printhead lifts to save the ribbon. In this case, a rewinder can help keep the media flat without bending or buckling when passing through the printhead area. Please contact a qualified professional to confirm.)





POSTEK OX Series

Industrial RFID|Barcode Label Printer

Model:
OX318r
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 300 dpi
Wireless Module:
 Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4/5GHz)

Bluetooth 5.0

Max Print Speed: 10 ips
Max Print Width: 6.6″ (168 mm)
Max Print Length: 118″ (3000 mm)
MPU:
 64-bit, quad Arm®Cortex®-53 core, maximum operating frequency 1.8 GHz
GPU:
 GC NanoUltra 3D (1 shader) & GC320 2D OpenGL ES 2.0
Memory:
 2 GB DDR4 RAM, 8GB managed NAND Flash
HEAT™ Level①:
 Ⅰ

RFID Encoder:

Supports UHF EPC Gen 2, ISO 18000-6C protocols

Media Roll:

Maximum Media Width: 7.09″ (180 mm)

Minimum Media Width: 1.18″ (30 mm)

Maximum Outer Diameter: 9″ (228.6 mm)

Inner Diameter: 1.5” (38mm) / 3” (76.2mm)

Minimum Label Length:

Tear-off: 0.59″ (15 mm)

Peel-off: 0.47″ (12 mm), with peeled-label detect; 0.2″ (5 mm), w/o peeled-label detect

Rewind: 0.2″ (5 mm)

Media Thickness:

Regular RFID Label Printer: 0.0024″ ~ 0.012″ (0.06 ~ 0.305 mm), including liner

Mount-on-Metal RFID Label Printer②: 0.063″ (1.6 mm) max., including liner

Ribbon:
 Maximum Length: 1968′ (600 m)Maximum Outer Diameter: 3.38"(86 mm)Inner Diameter: 1" (25.4 mm) Width: 1.18" to 6.93"(30 mm to 176 mm)

Ink side: both In and Out

Media Sensor:

Upper reflective: detects black mark on face side

Lower reflective: detects black mark on back side

Transmissive: detects gap, notch, hole

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.
User downloadable TrueType fonts.

Barcode Types:

1D Barcodes: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, GS1-128, etc.
2D Barcodes: MaxiCode, PDF417, Data Matrix, QR Code, GS1 DataMatrix, GS1 QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, 10/100/1000Mbps Ethernet, USB DEVICE 2.0, USB HOST, Applicator Control General I/O Signal Interface (Optional), Applicator Peripheral Logic Control I/O Signal Wiring Terminal Block (Optional)

LCD Display:

4.5" LCD Capacitive Touchscreen

Power Source:

100 - 240 V， 50/60 Hz

Weight:

21.4 kgs （ 47.08 lbs)

Dimensions:

W 12" (305 mm) x D 22.05" (560 mm) x H 16.06" (408 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing, Maximum Altitude: 5000 m

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing



① : HEAT ™, or Heating Equilibrium Adaptive Tuning, is a POSTEK designed and developed cutting-edge technology that sets the benchmark for heat management in thermal printing. Printers equipped with HEAT ™ have significant improvements in their printout clarity and print speed. The HEAT ™ level represents the fineness of the heating uniformity with level I being the finest.

② : For Mount-on-Metal RFID tags, the flexibility of the tag and whether or not to use fillings to bridge the gaps between tags can affect print quality and even encoding success rate. It is strongly recommended to test the tags on this POSTEK printer before purchasing.




Optional Items

*Accessories shall be installed at the factory

   

RFID Verifier*:

External-mount module (Only available for RFID models)

Visual Verifier*:

There are three software packages listed below for the visual verifier, and users can choose one from them based on needs and budget:

1.Verifies 1D & 2D barcode data.

2. Verifies 1D & 2D barcode data and evaluates printed barcode symbologies.

3. Verifies 1D & 2D barcode data, evaluates printed barcode symbologies, and inspects print defects.

(An internal or external rewinder is required to keep the media flat without bending or buckling when passing through the visual scanning area.)

Automatic Peeler*: A dedicated set of peeling rollers, along with an internal liner rewinder
Internal Rewinder*: Maximum Rewind Roll Diameter: 8" (203 mm)
Ribbon Saving Kit*:
 Includes the following items:

1. The second platen roller & pinch roller assembly.
2. The ribbon take-up clutch.
(An internal or external rewinder may be required to use the Ribbon Saving function. The media will be advanced by the second platen roller when the printhead lifts to save the ribbon. In this case, a rewinder can help keep the media flat without bending or buckling when passing through the printhead area. Please contact a qualified professional to confirm.)
