POSTEK C168 Series

Commercial
Barcode Label Printer


PRINTING FLEXIBILITY

WITH A WIDE SELECTION OF MEDIA




Model
C168/200s
C168/300s

Highest print speed

6ips

Maximum print width

108mm

Maximum print length

4000mm

Printing resolution

203dpi
more specs

Highest print speed

4ips

Maximum print width

106mm

Maximum print length

2000mm

Printing resolution

300dpi
more specs

PRINTING FLEXIBILITY

WITH A WIDE SELECTION OF MEDIA

OVERVIEW

Long lasting durability and ease of use, plus affordability are the hallmarks of the C168 Series compact printer.

The direct thermal and thermal transfer printing modes and an adjustable Reflective Media Sensor affords users a wide range of media choices and printing flexibility.

FEATURES

Heat Equalizing Algorithm Technique (HEAT™)

HEAT™ technique, which assures real-time monitoring and accurate calculation on thermal control, newly developed by POSTEK, is a cutting edge technology in heating control of thermal print-heads. With HEAT™, the POSTEK printers can significantly improve their performance in the aspects of printout clarity and print speed.

Reflective & transmissive sensors flexibly recognize various kinds of media

Both reflective & transmissive sensors promote great flexibility to print on most types of labels including continuous, labels with gaps, labels with marks and even labels with holes.

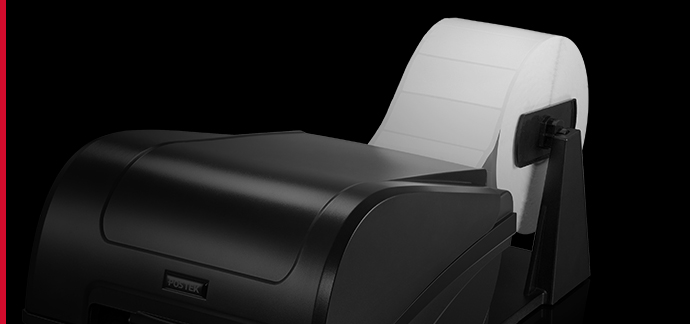

Free media stand More capacity = Less downtime

The Free External Media stand easily increases the media capacity fourfold, saving you time on changing the media, which greatly enhances the efficiency.

Bearings reduce wear and friction and ensure durability

All rotating parts are supported by ball bearings or fixed bearings, thereby eliminating wear caused from direct contact with plastic.

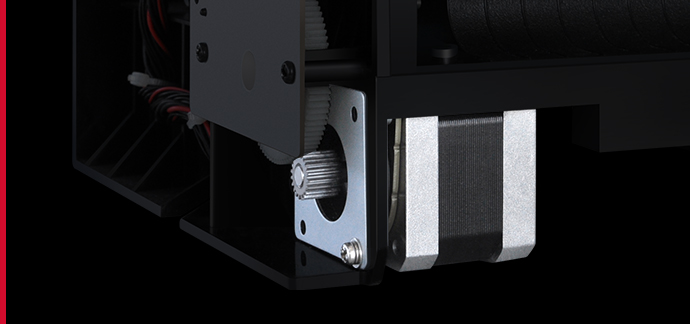

Industrial class stepping motor Extra quality = Zero fault

C168 is manufactured with the Industrial Class Stepping Motor used on our commercial models, ensuring strong power and stable performance.

More information
Product support

POSTEK C168 Series

Commercial Barcode Label Printer

Model: C168/200s
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 203 dpi
Max Print Speed: 6 ips
Max Print Width: 4.25″ (108 mm)
Max Print Length: 157″ (4000 mm)
Memory:

8 MB FLASH ROM, 16 MB SDRAM

*HEAT™ Level:
 Ⅰ
Media:

Width: 4.37′′(111 mm) max., 0.98′′(25 mm) min.

Outer Diameter: 4" (102 mm) or 9′′(229 mm) (Using External Media Stand).

Inner Diameter: 1" (25.4mm)

Media Thickness: 0.003" ~ 0.006" (0.08 ~ 0.15 mm), including liner

Minimum Label Length:

- Thermal Transfer
Tear-off: 0.2″ (5 mm)
Cutter: A150/A400: 0.79″ (20 mm) , AG120/AG300: 0.51″ (13 mm)
- Direct Thermal
Tear-off: 1.46″ (37 mm)
Cutter: A150/A400: 1.77″ (45 mm), AG120/AG300: 1.97″ (50 mm)

Ribbon:
 Maximum Length: 984′ (300 m)

Outer Diameter: 3"(76.2 mm) max.
Inner Diameter: 1" (25.4 mm)

Width: 4.3"(110 mm)

Media Sensor:

Reflective (Adjustable) and Transmissive (Two positions)

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.

Barcode Types:

1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.2D Barcode: MaxiCode, PDF417, Data Matrix, QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, USB DEVICE 2.0

Power Source:

100 - 240 V， 50/60 Hz ;Output: DC 24 V, 2.5 A

Weight:

2.8 kgs（6.17 lbs）

Dimensions:

W 9.3" (236 mm) x D 11.5" (291 mm) x H 7.8" (199 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing

Optional Items：

Wi-Fi, Bluetooth, Guillotine Cutter, Rotary Cutter, External Label Rewinder,

Media Guide Adapter, 10/100 M Adaptive Ethernet Port.


* HEAT ™ ( Heating Equilibrium Adaptive Tuning ) developed by POSTEK, is a cutting-edge technology in heating control of thermal printheads. With HEAT™, the POSTEK printers can significantly improve their performance in the aspects of printout clarity and print speed. The HEAT™ level represents the fineness of the heating uniformity with level I being the finest.





POSTEK C168 Series

Commercial Barcode Label Printer

Model: C168/300s
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:

300 dpi

Max Print Speed: 4 ips
Max Print Width: 4.17″ (106 mm)
Max Print Length: 79″ (2000 mm)
Memory:

8 MB FLASH ROM, 16 MB SDRAM

*HEAT™ Level:
 Ⅰ
Media:

Width: 4.37′′(111 mm) max., 0.98′′(25 mm) min.

Outer Diameter: 4" (102 mm) or 9′′(229 mm) (Using External Media Stand).

Inner Diameter: 1" (25.4mm)

Media Thickness: 0.003" ~ 0.006" (0.08 ~ 0.15 mm), including liner

Minimum Label Length:

- Thermal Transfer
Tear-off: 0.2″ (5 mm)
Cutter: A150/A400: 0.79″ (20 mm), AG120/AG300: 0.51″ (13 mm)
- Direct Thermal
Tear-off: 1.46″ (37 mm)
Cutter: A150/A400: 1.77″ (45 mm), AG120/AG300: 1.97″ (50 mm)

Ribbon:
 Maximum Length: 984′ (300 m)

Outer Diameter: 3"(76.2 mm) max.
Inner Diameter: 1" (25.4 mm)

Width: 4.3"(110 mm)

Media Sensor:

Reflective (Adjustable) and Transmissive (Two positions)

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.

Barcode Types:

1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.2D Barcode: MaxiCode, PDF417, Data Matrix, QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, USB DEVICE 2.0

Power Source:

100 - 240 V， 50/60 Hz ;Output: DC 24 V, 2.5 A

Weight:

2.8 kgs（6.17 lbs）

Dimensions:

W 9.3" (236 mm) x D 11.5" (291 mm) x H 7.8" (199 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 85% non-condensing

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 85% non-condensing

Optional Items：

Wi-Fi, Bluetooth, Guillotine Cutter, Rotary Cutter, External Label Rewinder,

Media Guide Adapter, 10/100 M Adaptive Ethernet Port



* HEAT ™ ( Heating Equilibrium Adaptive Tuning ) developed by POSTEK, is a cutting-edge technology in heating control of thermal printheads. With HEAT™, the POSTEK printers can significantly improve their performance in the aspects of printout clarity and print speed. The HEAT™ level represents the fineness of the heating uniformity with level I being the finest.
