POSTEK Q8 Series

Commercial
Barcode Label Printer

SMALL FOOTPRINT

WITHOUT COMPROMISING EASE-OF-USE AND DURABILITY

Model
Q8/200
Q8/300

Highest print speed

4ips

Maximum print width

108mm

Maximum print length

4000mm

Printing resolution

203dpi
more specs

Highest print speed

3ips

Maximum print width

106mm

Maximum print length

2000mm

Printing resolution

300dpi
more specs

 THE BEST CHOICE

FOR THOSE SPACE LIMITED APPLICATIONS

OVERVIEW


SMALL FOOTPRINT WITHOUT COMPROMISING EASE-OF-USE AND DURABILITY

The compact, cozy design makes the Q8 printer the best choice for those space limited applications. The unique mechanism guarantees highly reliable performance with reduced noise. The open structure design enables Q8 users to easily replace consumables.

FEATURES


Open body design, fixed print module and one-piece chassis enhanced
in every side structure

A prime example of compact structure design, Q8 owns the most extraordinary stability, and brings you the quietest printing experience.

Cover opened from the side, like an angel's wing. The compact model is simply designed and cute in its appearance.

 The operational zone is completely opened, which allows extra space, and makes operations easier and faster.

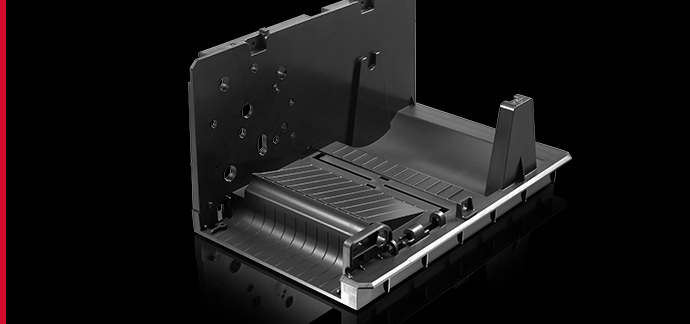

One-piece chassis, strengthened in every side. High quality and reliable.


National patented "Convective Heat Transfer"

National patented "Convective Heat Transfer" technology, effectively cools down the working temperature of the printer, especially when printing continuously.


Heat Equalizing Algorithm Technique (HEAT™)

HEAT™ technique, which assures real-time monitoring and accurate calculation on thermal control, newly developed by POSTEK, is a cutting edge technology in heating control of thermal print-heads. With HEAT™, the POSTEK printers can significantly improve their performance in the aspects of printout clarity and print speed.



More information
Product support

POSTEK Q8 Series

CommercialBarcode Label Printer

Model: Q8/200
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 203 dpi
Max Print Speed: 4 ips
Max Print Width: 4.25″ (108 mm)
Max Print Length: 157″ (4000 mm)
Memory:

8 MB FLASH ROM, 16 MB SDRAM

*HEAT™ Level:

II

Media:

Width: 4.72′′(120 mm) max., 0.98′′(25 mm) min.

Maximum Outer Diameter: 4.49" (114 mm)

Inner Diameter: 1" (25.4mm)

Media Thickness: 0.003" ~ 0.006" (0.08 ~ 0.15 mm), including liner

Minimum Label Length:

- Thermal Transfer:
Tear-off: 0.2″ (5 mm)
Cutter: AG120/AG300: 0.51″ (13 mm)
- Direct Thermal:
Tear-off: 1.32″ (33.5 mm)
Cutter: AG120/AG300: 1.63″ (41.5 mm)

Ribbon:
 Length: 360′ (110 m)max., Outer Diameter: 1.5"(38 mm)max., Inner Diameter: 0.5" (12.7 mm), Width: 4.3"(110 mm)
Media Sensor:

Reflective

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.

Barcode Types:

1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.2D Barcode: MaxiCode, PDF417, Data Matrix, QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, USB DEVICE 2.0

Power Source:

100 - 240 V， 50/60 Hz ;Output: DC 24 V, 2.5 A

Weight:

2.1 kgs（4.63 lbs）

Dimensions:

W 8.58" (218 mm) x D 10.04" (255 mm) x H 5.91" (150 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing

Optional Items：

Wi-Fi, Bluetooth, Guillotine Cutter, External Label Rewinder,

Media Guide Adapter



* HEAT ™ ( Heating Equilibrium Adaptive Tuning ) developed by POSTEK, is a cutting-edge technology in heating control of thermal printheads. With HEAT™, the POSTEK printers can significantly improve their performance in the aspects of printout clarity and print speed. The HEAT™ level represents the fineness of the heating uniformity with level I being the finest.


POSTEK Q8 Series

CommercialBarcode Label Printer

Model: Q8/300
Print Mode:
 Direct Thermal and Thermal Transfer
Print Resolution:
 300 dpi
Max Print Speed: 3 ips
Max Print Width: 4.17″ (106 mm)
Max Print Length: 79″ (2000 mm)
Memory:

8 MB FLASH ROM, 16 MB SDRAM

*HEAT™ Level:

II

Media:

Width: 4.72′′(120 mm) max., 0.98′′(25 mm) min.

Maximum Outer Diameter: 4.49" (114 mm)

Inner Diameter: 1" (25.4mm)

Media Thickness: 0.003" ~ 0.006" (0.08 ~ 0.15 mm), including liner

Minimum Label Length:

- Thermal Transfer:
Tear-off: 0.2″ (5 mm)
Cutter: AG120/AG300: 0.51″ (13 mm)
- Direct Thermal:
Tear-off: 1.32″ (33.5 mm)
Cutter: AG120/AG300: 1.63″ (41.5 mm)

Ribbon:
 Length: 360′ (110 m)max., Outer Diameter: 1.5"(38 mm)max., Inner Diameter: 0.5" (12.7 mm), Width: 4.3"(110 mm)
Media Sensor:

Reflective

Fonts:

Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.

Barcode Types:

1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.2D Barcode: MaxiCode, PDF417, Data Matrix, QR Code, CS Code, etc.

Interfaces:

RS-232 Serial, USB DEVICE 2.0

Power Source:

100 - 240 V， 50/60 Hz ;Output: DC 24 V, 2.5 A

Weight:

2.1 kgs（4.63 lbs）

Dimensions:

W 8.58" (218 mm) x D 10.04" (255 mm) x H 5.91" (150 mm)

Operating Environment:

Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing

Storage Environment:

Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing

Optional Items：

Wi-Fi, Bluetooth, Guillotine Cutter, External Label Rewinder,

Media Guide Adapter



* HEAT ™ ( Heating Equilibrium Adaptive Tuning ) developed by POSTEK, is a cutting-edge technology in heating control of thermal printheads. With HEAT™, the POSTEK printers can significantly improve their performance in the aspects of printout clarity and print speed. The HEAT™ level represents the fineness of the heating uniformity with level I being the finest.
