Ultra-strong TPH

ensures the maximum printing effect

effectively prolonging the lifespan

OVERVIEW

Let iQ do the thing for you. It's fast, sturdy, and needs very little room to perform at its best.

Specially designed Thermal Print Head (TPH) Module structure ensures both excellent printing effect and ultra-long printhead lifespan. Massive volume handling, ease of use operation, fast and smooth running, and beautiful label printing combine to make the iQ Series printer an ideal choice for DT printing.

FEATURES

Exquisite "TPH & Cooling Plate in One-piece" design

Ultra-strong TPH, complemented by smart TPH module structure design, ensures the maximum printing effect while imposing minimum pressure to the TPH, effectively prolonging the lifespan of both the print head and the printer. The "Thermal Print Head (TPH) & Cooling Plate in One-piece" design conducts the heat away much faster while printing, thereby enabling the printer to work longer without any pause.

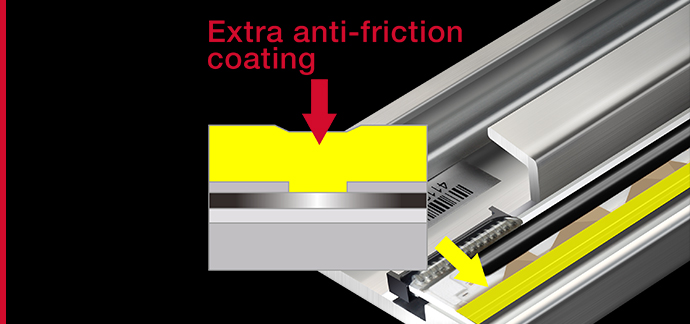

Extra anti-friction coating

Extra coating on TPH surface makes the TPH even more durable while largely reducing the chance of early wear of TPH.

Standard Wi-Fi connection

Standard Wi-Fi connection allows more flexibility to connect with mobile devices.

Heat Equalizing Algorithm Technique (HEAT™)

HEAT™ technique, which assures real-time monitoring and accurate calculation on thermal control, newly developed by POSTEK, is a cutting edge technology in heating control of thermal print-heads. With HEAT™, the POSTEK printers can significantly improve their performance in the aspects of printout clarity and print speed.

Bearings reduce wear and friction and ensure durability

All transmission parts are supported by bearings (ball bearings or fixed bearings), eliminating wear caused from direct contact with plastic.

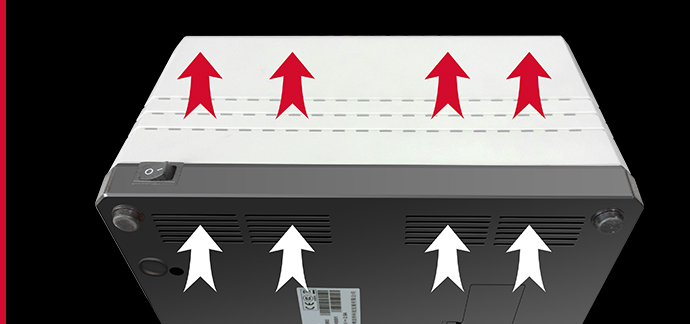

National patented "Convective Heat Transfer"

National Patented “Convective Heat Transfer” technology effectively cools down the working temperature of the printer, especially when printing continuously.

More information

Product support

Model:	iQ100
Print Mode:	Direct Thermal
Print Resolution:	203 dpi
Max Print Speed:	5 ips
Max Print Width:	4.09″ (104 mm)
Max Print Length:	40″ (1016 mm)
Memory:	8 MB FLASH ROM, 16 MB SDRAM
*HEAT™ Level:	II
Media Roll:	Width: 4.72′′(120 mm) max., 0.98′′(25 mm) min. Maximum Outer Diameter: 5" (127 mm) Inner Diameter: 0.98" (25mm) Media Thickness: 0.0023" ~ 0.0098" (0.06 ~ 0.25 mm), including liner
Minimum Label Length:	Tear-off: 0.20″ (5 mm) Cutter: AG120/AG300: 0.51″ (13 mm)
Media Sensor:	Reflective and Transmissive
Fonts:	Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.
Barcode Types:	1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.2D Barcode: MaxiCode, PDF417, Data Matrix, QR Code, CS Code, etc.
Interfaces:	RS-232 Serial, USB DEVICE 2.0
Power Source:	100 - 240 V， 50/60 Hz ;Output: DC 24 V, 2.5 A
Weight:	1.8 kgs（3.97 lbs）
Dimensions:	W 8.58" (218 mm) x D 10.04" (255 mm) x H 5.91" (150 mm)
Operating Environment:	Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing
Storage Environment:	Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing
Optional Items：	Guillotine Cutter, External Label Rewinder, Media Guide Adapter

* HEAT ™ ( Heating Equilibrium Adaptive Tuning ) developed by POSTEK, is a cutting-edge technology in heating control of thermal printheads. With HEAT™, the POSTEK printers can significantly improve their performance in the aspects of printout clarity and print speed. The HEAT™ level represents the fineness of the heating uniformity with level I being the finest.

Model:	iQ200
Print Mode:	Direct Thermal
Print Resolution:	203 dpi
Max Print Speed:	5 ips
Max Print Width:	4.09″ (104 mm)
Max Print Length:	40″ (1016 mm)
Memory:	8 MB FLASH ROM, 16 MB SDRAM
*HEAT™ Level:	II
Media Roll:	Width: 4.72′′(120 mm) max., 0.98′′(25 mm) min. Maximum Outer Diameter: 5" (127 mm) Inner Diameter: 0.98" (25mm) Media Thickness: 0.0023" ~ 0.0098" (0.06 ~ 0.25 mm), including liner
Minimum Label Length:	Tear-off: 0.20″ (5 mm) Cutter: AG120/AG300: 0.51″ (13 mm)
Media Sensor:	Reflective and Transmissive
Fonts:	Five built-in dot matrix fonts, which include Basic Latin and Latin-1 Supplement character sets.User downloadable TrueType fonts.
Barcode Types:	1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.2D Barcode: MaxiCode, PDF417, Data Matrix, QR Code, CS Code, etc.
Interfaces:	RS-232 Serial, USB DEVICE 2.0
Power Source:	100 - 240 V， 50/60 Hz ;Output: DC 24 V, 2.5 A
Weight:	1.8 kgs（3.97 lbs）
Dimensions:	W 8.58" (218 mm) x D 10.04" (255 mm) x H 5.91" (150 mm)
Operating Environment:	Temperature: 32°F ~ +104°F (0°C ~ 40°C)Relative humidity: 5% - 90% non-condensing
Storage Environment:	Temperature: -40°F ~ +140°F (-40°C ~ 60°C)Temperature: 5% - 90% non-condensing
Optional Items：	Wi-Fi, Bluetooth, Guillotine Cutter, External Label Rewinder, Media Guide Adapter
